Name: Best Sinter Muffle Furnace Electric Muffle Furnace Laboratory Heating Test Equipment Price
Brand: Best Sinter Muffle Furnace Electric Muffle Furnace Laboratory Heating Test Equipment Price
SKU: MF-1600C
Rating: 5 (173 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Classification: Laboratory Heating Equipments

Model Number: MF-1600C

working temperature: â‰¤1500â„ƒ

temperature accuracy: Â±1â„ƒ

heating element: MoSi2 rods

Product name: electrical muffle furnace

Application: Laboratory Heating Test Equipment

Type: Benchtop

Información básica

Model Number: MF-1600C

Pago y Envío Términos

Packaging Details: The package of electrical muffle furnace package;woody package

Supply Ability: 10 Set/Sets per Day

Descripción de producto

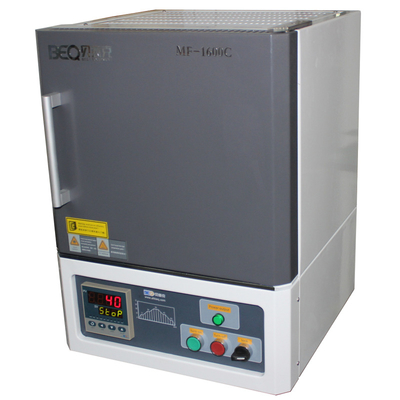

electrical muffle furnace

Product Description

MF-1600C-II

Main features

Ø Heat insulating materials adopt Alumina fiber inorganic ones, which is formed with vacuum absorption, environmental protecting and energy saving.

Ø Furnace body is double air cooling structure to control furnace surface Temp. no more than 60℃ when furnace is heated into max. Temp.

Ø Made of various heat insulating materials to make furnace smaller and energy consumption less(electric consumption is only 25% of the same type furnace consumption)

Technical Parameters

Power

· Power rated: 6KW (208-240V)

Voltage

· Voltage rated: AC 208-240V 50/60HZ

Working Temperature

· Max. Temperature: 1600 °C

· Continuous working temperature: ≤1500℃

Recommended Heating Rate:

Below 1400℃, ≤10℃/min, 1400-1600℃ ≤ 5℃/min, 1600℃ above ≤2℃/min

Temperature Controller

· PID automatic control and auto-tune function.

· 30 programmable segments for precise thermal processing.

· Built-in protection for the over-heated and broken thermocouple.

Thermocouple

· B type

Heating Elements

· Silicon Molybdenum Rod (U shape)

Temperature Accuracy

+/- 1 °C

Dimensions

· Chamber size(L*D*H): 200*300*200 mm (12L)

· Furnace size(L*W*H): 550*660*820mm

Net Weight

160kg

Shipping dimensions(L*W*H)

760*700*1140 mm(wooden case)

Shipping weight

220kg

Compliance

· CE Certified
