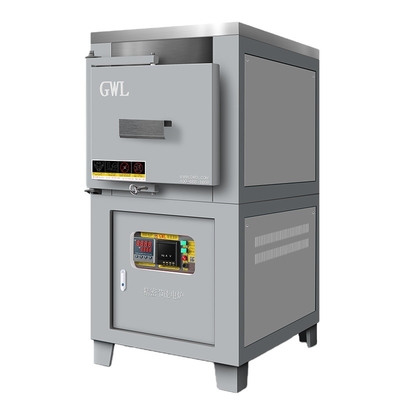

Laboratory Heating Test Equipment 1000 1600 1800 Degree Heat Treatment Laboratory Muffle Furnace Electric High Temperature Manufacturer

1 Set
MOQ
Laboratory Heating Test Equipment 1000 1600 1800 Degree Heat Treatment Laboratory Muffle Furnace Electric High Temperature Manufacturer
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Classification: Laboratory Heating Equipments
Model Number: LB
Product name: Ceramic Fiber Muffle Furnace
Application: Laboratory Heating Test Equipment
Max temperature: 1200 -1800 deg C
Working temperature: Depends
Chamber size: Customizable
Model: GWL-LB
Temperature control: 1C/-1C(Depends on the chamber size)
Heating Rate: Max 20C/min
Warranty: 1 Year
Certificate: CE
Información básica
Certificación: CE
Model Number: LB, GWL-LB
Pago y Envío Términos
Packaging Details: The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the the container is too tight, we will use pe film for packing or pack it according to the real situations.
Supply Ability: 100 Set/Sets per Month
Descripción de producto
Product Description
Product Name
High Temperature Muffle Furnace
Material
Aluminum Fiberboard(Refractory materials) + Sic or Mosi2
Package
Composite wood packaging (fumigation free), or other wooden export packaging. Ensure the safety of the goods.

Product performance description

The muffle furnace designed for universities, research institutes, laboratories and industrial and mining enterprises for ceramics, metallurgy, electronics, glass, chemicals, machinery, refractories, new material development, special materials, building materials, Special equipment developed for sintering, melting,analysis, and production of metal, non-metal, and other materials.Muffle furnace is a general heating equipment, according to the appearance of the shape can be divided into box furnace, tube furnace, crucible furnace.

Control panel

The control panel is equipped with an intelligent temperature controller to control the power switch, main heating work/stop button, voltage, current meter, and computer interface so that the working status of the system can be observed at any time. This product uses a reliable integrated circuit, and the working environment is good. Interference,programmablecurve,automatic temperature / temperature,operation can be modified temperature control parameters and procedures, flexible and convenient, simpleoperation.

Heating Elements

Using silicon carbide rod(Sic) or silicon molybdenum rod(Mosi2) as the chamber heating elements (Different temperature requirements the different heating elements and ceramic board will be using),Usually below 1200 degrees Celsius, we will use alloy resistance wire or silicon carbon rod. Silicon carbon rods are used for heating elements below 1600 and silicon molybdenum rods are used for heating elements below 1800.

Ceramic Fiber Board

The furnace lining is made of vacuum-formed high-purity alumina polylightweight materials. The materials are easy to be hit and the loading position (furnace mouth and bottom) is made of lightweight hollow aluminum oxide plate with high operating temperature, small heat storage, no cracks, no slag, good insulation performance (the energy-saving effect is more than 60% of that of the traditional furnace).

Thermocouple

Thermocouple is a commonly used temperature measuring element in temperature measuring instruments. It directly measures the temperature and converts the temperature signal into a thermoelectric electromotive force signal, which is converted into the temperature of the measured medium by an electrical instrument (secondary instrument). GWL offers a choice of K to platinum rhodium and B thermocouples.
Product Usage
Muffle Furnace is widely using for laboratory, industrial and mining enterprises, scientific research units for element analysis and determination and general small steel parts quenching, annealing, tempering and other heat treatment heating use
Packing&Shipping
The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the container is too tight, we will use pe film for packing or pack it according to customers special request.
Shipment by sea, by air or by express as per customer's requirement.Our company has established a cooperative relationship with many logistics enterprises to guarantee the safe transportation of goods and the time limit.
Company Introduction
Luoyang Juxing Kiln Co., Ltd which is a manufacturing company that manufactures good & high-quality electric resistance laboratory furnaces and industrial kilns. The company provides the customized products and OEM service. The factory owns proficient skills and an updated machine. the company has passed the IOS quality management system. and some products have passed the EU CE certificate.

Our Services & Strength

Our product has widely used in ceramics, metallurgy, electronics, glass, luminescent materials, non-ferrous metals, chemical industry, machinery, refractories, new materials development, special materials, building materials, and other fields.And can be customized according to the customer's process requirements.
All kinds of electric furnaces have a high degree of automation and are at the leading level in China. They are sold to more than 20 provinces, municipalities, autonomous regions and special zones in China, national key colleges and universities, national key laboratories, Chinese Academy of Sciences, and High School Research Institute. Countries such as North America, Russia, the Philippines, and Japan. has a high reputation in the industry.
Certifications
Exhibition
Related Products
FAQ
Q: IF I NEED SPECIAL DESIGN ABOUT FURNACE CHAMBER DOES YOUR COMPANY CAN OFFER IT?
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.
Q: IF WE PURCHASE YOUR PRODUCT WOULD YOUR COMPANY GIVEN ANY TRAINING OR TECHNICAL SUPPORT?
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.
Q: HOW IS YOUR PRODUCT AFTER-SALE GUARANTEE?
A: We provide one-year service for our product (except the heating element), the heating element we provide three-month service. And also, the engineer available doing service overseas.
Q: YOUR PRODUCT WITH ANY ACCESSORIES?
A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers,
High-Temperature Gloves).
Q: HOW TO CONTACT YOUR COMPANY?
A: Our Company address is: Yujia industrial zone, Wuhan south road, Jianxi District, Luoyang Henan, China.
