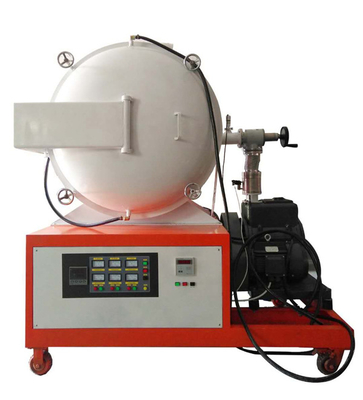

High Quality Direct High Temperature Experiments Maker Vacuum Atmosphere Muffle Furnace With Alumina Ceramic Atmosphere Furnace

1.0 Sets
MOQ
High Quality Direct High Temperature Experiments Maker Vacuum Atmosphere Muffle Furnace With Alumina Ceramic Atmosphere Furnace
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 1 year
Classification: Laboratory Heating Equipments
Customized support: OEM, ODM, OBM
Model Number: Customization
Product name: Tube Furnace
Heating element: Silicon Molybdenum Rod
Chamber size: Customizable
Max temperature: 1800
Size: Customer's Demand
Product type: Industrail Furnace
Voltage: 220V/380V
Package: Safe Packing
Application: High Temperature Experiments
Display: Digital Display
Información básica
Model Number: Customization
Pago y Envío Términos
Packaging Details: Standard export packing: Internal anti-collision protection, external export wooden box packing
Supply Ability: 100 Set/Sets per Month
Descripción de producto
Product Overview

Box atmosphere furnace

The box atmosphere furnace is suitable for universities, research institutes, industrial and mining enterprises to do powder
roasting, ceramic sintering, high temperature experiments, chemical analysis, material processing, quality testing. Special
specifications can be designed and manufactured according to user needs.
FEATURES AT A GLANCE
20 years focus on the development and production of electric heating electric furnace
Intelligent temperature control
Attentive service
Easy to operate
Support customization
Direct supply from the manufacturer
Various specifications
Quality control layer by layer


Electric furnace chamber
The shell is made of heated steel plate, which is resistant to rapid heat and cold, and has good thermal
insulation performance
Simple operation
Simple operation ,User-friendly design, easy to use.

Multi-stage programming
simple operation, convenient and fast
PRODUCT SPECIFICATIONS
Temperature
1000℃
1200℃
1400℃
1600℃
1700℃
1800℃
Parameter
Voltage AC
220V/380V
220V/380V
220V/380V
220V/380V
220V/380V
220V/380V
Operating temperature
1000℃
1200℃
1400℃
1600℃
1700℃
1800℃
Long-term operating temperature
1000℃
1200℃
1350℃
1550℃
1650℃
1750℃
Temperature field uniformity in the furnace
±1℃（depending on the size of the heating chamber）
±1℃（depending on the size of the heating chamber）
±1℃（depending on the size of the heating chamber）
±1℃（depending on the size of the heating chamber）
±1℃（depending on the size of the heating chamber）
±1℃（depending on the size of the heating chamber）
Temperature measuring element and temperature measurement range
Nichrome NiSil K
Nichrome NiSil K
Platinum Rhodium Platinum S
Platinum Rhodium Platinum B
Platinum Rhodium Platinum B
Platinum rhodium platinum or fiber infrared temperature measurement
Temperature measurement range0-1300℃
Temperature measurement range0-1300℃
Temperature measurement range0-1700℃
Temperature measurement range0-1820℃
Temperature measurement range0-1820℃
Program curve segments
16 paragraphs, 32 segments, 40 segments optional
16 paragraphs, 32 segments, 40 segments optional
16 paragraphs, 32 segments, 40 segments optional
16 paragraphs, 32 segments, 40 segments optional
16 paragraphs, 32 segments, 40 segments optional
16 paragraphs, 32 segments, 40 segments optional
Heating rate
1℃/h-20℃/min
1℃/h-20℃/min
1℃/h-20℃/min
1℃/h-20℃/min
1℃/h-20℃/min
1℃/h-20℃/min
Heating element
HRE resistance wire
HRE resistance wire
Silicon carbon rods
Type 1700 silicon molybdenum rod
Type 1800 silicon molybdenum rod
Type 1900 silicon molybdenum rod
Refractory materials
Imported high-purity alumina fiberboard
Imported high-purity alumina fiberboard
Imported high-purity alumina fiberboard
Imported high-purity alumina fiberboard
Imported Morgan lightweight materials
Imported Morgan lightweight materials
Cooling method
Double-layer furnace shell, air-cooled
Double-layer furnace shell, air-cooled
Double-layer furnace shell, air-cooled
Double-layer furnace shell, air-cooled
Double-layer furnace shell, air-cooled
Double-layer furnace shell, air-cooled
Furnace body temperature
≤45degrees
≤45degrees
≤45degrees
≤45degrees
≤45degrees
≤45degrees
Warranty coverage and duration
Electric furnace free warranty 1 year, heating element is not warranted (free replacement of natural damage within three months)
Customer Options
1. Crucibles, cassette bowls, corundum furnace pads/silicon carbide pads
2. RS485 communication, computer control software and hardware
3. Touch screen control temperature controller
4. Paperless recorder
5. Increase the exhaust port
6. Consumables: heating element, temperature measurement original
7. Increase the viewing opening, endoscope
The furnace chamber has a usable size(mm）
voltage（v）
power（kw）
Control accuracy
200×150×150
220/380
4
±1
200×200×200
220/380
6
±1
300×200×200
220/380
8
±1
300×300×300
220/380
10
±1
400×300×300
220/380
12
±1
500×300×200
220/380
15
±1
500×300×300
380
18
±1
500×500×500
380
25
±1
800×500×500
380
40
±1
1200×500×500
380
85
±1
1200×800×800
380
110
±1
PRODUCT CONFIGURATION
Silicon carbon rods
Silicon molybdenum rod
SALES AND SERVICE NETWORK
Company Profile

Set research and development, production, sales of electric furnace manufacturers

Luoyang Hongda Furnace Industry Co., Ltd. has a history of more than 20 years in the production of electric heating electric furnaces. The company now has more than 20 standardized electric furnaces for applications ranging from 400°C to 1800°C.There are:
ceramics, ceramics, chemicals, laboratory and dental, metal and plastic heat treatment and surface treatment technology art, casting, glass, etc. We have full-time after-sales service engineers, and make every effort to provide customers with perfect technical support and sales Post-service.
Certifications
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.Are you a manufacturer or trade company？
Yes, we are 100% manufacturer with more than 20 years experiences in production about all kinds of furnaces. All the procedures
will be finished by us, that is good to control the quality and production process.
3.How can you guarantee the production quality?
Firstly, all the processes are strictly following the standard of the metallurgy process; secondly,We have QC department who perform strictly in each producing process including package.
