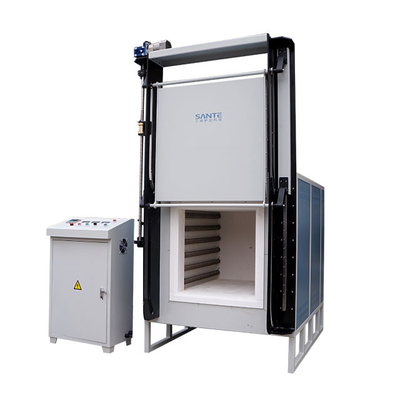

1200C Metal Laboratory Melting Muffle Furnace for Materials Testing and Heat Treatment Use

1 set
MOQ
1200C Metal Laboratory Melting Muffle Furnace for Materials Testing and Heat Treatment Use
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Type: Resistance Furnace, Car bottom
Usage: Sintering Furnace
Voltage: 380V
Dimension(L*W*H): 600*800*600MM
Power (kW): 50
Warranty: 1 Year
Applicable Industries: Manufacturing Plant, Retail, Construction works , Energy & Mining
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Weight: 1T
Certificación: SGS CE ISO
Product name: glass melting elevator furnace with PID automatic control
Application: Melting Metal
Chamber size: 600x800x600mm
Working temperature: 1300C
Heating element: SiC rods
Power supply: 380V/50Hz-60Hz
Temperature control: 1C/-1C
Thermocouple: S type
OEM: YES
Información básica
Certificación: SGS CE ISO
Pago y Envío Términos
Packaging Details: Standard Export Safe Packing: 1.The furnace body was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet 2.Tailored polywood case, coupled perfectly with the pallet 3.Filled with polyfoam, fit well between the fur
Supply Ability: 1000 Set/Sets per Year
Descripción de producto
Product Description

Product Application

1200℃ STD series products are mainly for the daily application development of the laboratory, high-quality furnace materials and stable temperature control system to ensure the reliability of the experimental data; the product uses high-purity alumina material as the furnace material, and the high-quality alloy resistance wire is used for heating element, and the temperature controller uses microcomputer PID control module to achieve precise temperature control and constant temperature requirements.

Model No.
STD-96-12
STD-288-12
STD-640-12
Chamber size(mm)W*D*H
400*600*400
600*800*600
800*1000*800
Power supply
380V/30KW
380V/50KW
380V75KW
Max.  temperature
1200 ℃
Continuous temp.
1100℃
Heating rate
≤ 25℃/min ( suggest 15℃/min for longer life using of furnace )
Accessories
One pair of high temperature furnace gloves;
One pair of crucible stongs
Optional devices
Paperless recorder
Stainless steel exhaust chimney
Alumina crucible

Main Features

1. The furnace material is mullite brick, strong and durable and does not drop powder in high temperature, heat capacity is small, energy saving above 50%
2. The heating element is made of SIC rods, which can bear large load, stable and long service life
3. The heating rate is fast, from room temperature to 1000 degrees, generally takes 15-30 minutes
4. High precision of temperature control, small temperature compensation and temperature accuracy ± 1 ° C
5. Using intelligent PID temperature control instrument, with program function, can set the temperature rise curve, can be programmed 30 segments
6. Electronic components are used Delixi products, with leakage protection, safe and reliable
7. The machine will send out an alarm signal to the over-temperature during the working process, and automatically complete the protection action.
8. When the instrument program is set, just press the run button and the next work will be completed automatically

9. Optional air inlet can be used to purge and protect the inert gas such as air. It can also be installed with an exhaust chimney and connected with stainless steel bellows to discharge the toxic and harmful gases volatilized in the furnace to the designated location.

Detailed Images
Packing & Delivery
Packaging
Size
2200 (L) * 1500 (W) * 1500 (H)
Weight
1000KG



Packaging Details
1.The furnace body was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
Our Company

About Us

Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan﹒China Free Trade Zone. SAFTHERM products cover 1000℃/1200℃/1300℃/1400℃/1600℃/1700℃/1800℃ Box furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000℃ Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace and so on.

Our company has passed ISO9001 quality certification, CE certification and SGS factory certification. It also has got a number of technical honors like "Scientific and Technologic Enterprise of Henan Province", "National Small and Medium-Sized Sci-Tech Enterprise", "Refractory Material Technology Sintering R&D Center" issued by Science and Technology Department of Henan Province.
Before the products leaving the factory, it will be carried out QC processes, which including electrical test, temperature test, temperature accuracy calibration, furnace size check, furnace material check, product appearance inspection, electrical grounding safety test; ensure that each product is safe and qualified.

Certifications
Related Products

Mini Muffle Furnace

99.6% Response Rate

1400c muffle furnace

99.2% Response Rate

1700c muffle furnace

99.8% Response Rate

FAQ

Get answers here

1: Are you a factory?
Yes. We are China leading laboratory and industrial heating treatment furnace manufacturer, which integrates design, manufacture and sales for nearly 20 years.
2: Do you have customization or OEM service?
We can customize furnaces as product, work piece size, and temperature requirement. Meanwhile, we offer OEM service under the strict industrial standard.
3: What is the delivery time?
Normally within 15 working days after receiving the advanced payment or depends on order quantity.
4: How can you guarantee the production quality?
We have QC department who perform strictly in each producing process including package.
5: How long is your furnace warranty period?
One year(expect thermocouple and heating element), lifetime support
6: What payment terms does SAFTHERM support?
T/T, L/C and so on.
