Foundry Furnace Blower Fan Metallurgy Foundry Furnace Smoke Fan

1 Set
MOQ
$1,000.00(1 - 2 Sets) $800.00(3 - 4 Sets) $500.00(>=5 Sets)
Precio
Foundry Furnace Blower Fan Metallurgy Foundry Furnace Smoke Fan
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Type: Centrifugal Fan
Applicable Industries: Manufacturing Plant, Construction works , Energy & Mining, Industrial metallurgy system
Customized support: OEM, ODM, OBM
Electric Current Type: AC
Blade Material: Alloy steel/Stainless steel/Customized
Mounting: FREE STANDING
Model Number: SIMO Blower 6-11
Voltage: 380V/415V/440V/660V/6KV/10KV
Warranty: 1 Year
After-sales Service Provided: Field installation, commissioning and training, Engineers available to service machinery overseas
Application: foundry furnace blower fan
Motor: equipped with AC motor
Total pressure: 3031~16205Pa
Impeller: Forward impeller blades
Medium: Clean air/Dusty air
Temperature: 10~130℃
Driven type: coupling driven blower fan
Fan structure: single width single inlet, impeller overhung
Name: Metallurgy foundry furnace flue gas blower
Información básica
Model Number: SIMO Blower 6-11
Pago y Envío Términos
Packaging Details: Package for : Metallurgy foundry furnace flue gas blower : 1.export wooden case packing 2.bare package with steel pallet 3.other export package
Supply Ability: 300 Set/Sets per Month centrifugal fan and axial fan manufacturer
Descripción de producto

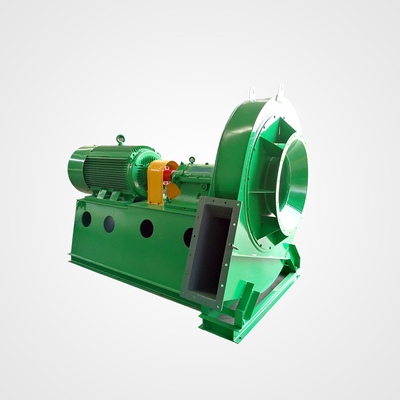

Metallurgy Foundry Furnace Flue Gas Blower

Product Description
Foundry furnace blower fan is applied in metallurgy field. SIMO can make customized centrifugal blower fan solution according to your fan details and requirements. Below furnace centrifugal blower fan for your reference.

Perfermance
Metallurgy foundry furnace flue gas blower
Performance Pressure range 3031~16205 Pa
Air flow range 8792~123090 m3/h
Impeller diameter 710~1600 mm
Speed 960~2900 rpm
Material foundry furnace blower fan case Q235, Q345, stainless steel Design as special
foundry furnace blower fan shaft 45# steel, Q304, SS304,SS316L
foundry furnace blower fan impeller Q304, 12Cr1Mov,15Crmov, 15MnV
Medium 10---130℃ Dustiness<80 g/m3 incombustible
Motor Siemens, ABB, WN, SIMO, LA IP 54,55,56 3 phase
Optional
components
System base frame, Protective screening,
Silencer, Inlet & Outlet pipeline compensator,
Inlet & Outlet flange, Damper, Electric actuator,
Shock isolator, Diaphragm coupling, Fluid coupling,
Motor rain cover, Temperature sensor, Vibrating sensor,
Soft starter, Inverter, Special Electrical Motor,
System monitoring Instrument,
Lube system, Overhead lube tank.

please click here for more details!

Application

Industrial centrifugal fan have widely used in industrial systems,such as

Building materials:Cement mill, Glass product,Brick klin,mineral waste esidue

Metallurgy: coke blast-furnace,steel-making,electrolytic aluminium,

Power Generation: biomass energy,coal furnace ,waste incineration

Production Process

We are strict with every step about the industrial centrifugal fan and axial fan.

Packing detail:Metallurgy foundry furnace flue gas blower is packed by wooden case and steel pallet

Delivery detail: 30 days after receive your payment

SEND INQUIRY NOW

Related product
Company Information

Xinxiang SIMO BLOWER Limited Company which was founded in 1995, mainly designs and manufactures Centrifugal fans and Axial flow fans which are applied to industrial systems, which is the senior member of China General Machinery Industry Association. SIMO BLOWER is one of the main large fan manufacturers in Central China, whichcovers an area of 100,000 square metres, owns more than 200 employees and the production capacity of 15000 sets one year.
There is an advanced Air flow Test Laboratory in our company. We master mature fan designing, testing, manufacturing technology, and can design and manufacture multipurpose fans according to users' requirements. So, we are able to meet users' complex and professional applications. SIMO BLOWER's products have been widely used in thousands of customers' industrial systems, such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.

At present, SIMO BLOWER' s customers distribute in these countries:
EUROPE: British, Denmark, Italy, Romania, Russia, Ukraine.
AMERICA: USA, Mexico, Peru.
ASIA: China, India, Indonesia, Israel, Korea, Malaysia, Pakistan, Philippines, Saudi Arabia, Thailand, UAE, Vietnam. Bangladesh

please contact me for customized parameters!

FAQ&Contact us

1. How many years your company has experience in centrifugal fan machines?


Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1995. We have more than 60 years experience on centrifugal fan. We are manufacture. Our product has been delivered to more than 40 countries and cities.

2. How about your company’s pre-sales service and after-sales service?

Answers: before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months’ repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.

3. Does your company have qualifications?

Answers: all of our product are produced by our company will pass ISO 9001-2008 and CE.
