XY-1600VFT Experiments CE High Temperature Vertical Tube Furnace Glass Tempering Furnace For Doing Quenching Test And Temperature Measurement

1.0 Pieces
MOQ
XY-1600VFT Experiments CE High Temperature Vertical Tube Furnace Glass Tempering Furnace For Doing Quenching Test And Temperature Measurement
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Classification: Laboratory Heating Equipments
Model Number: XY-1600VFT
Tube size: dia60/80mm(outer diameter)
Heating zone: 300 or 450mm
Max. temperature: 1600.C
Application: High Temperature Experiments
Working temperature: 1500.C
Temperature control: 30 Segments Programmable
Warranty: 12month
Heat Power: 4kw
Información básica
Model Number: XY-1600VFT
Pago y Envío Términos
Packaging Details: Plastic paper inside, Polyfoam filled, Wooden box outside
Supply Ability: 300 Piece/Pieces per Month
Descripción de producto

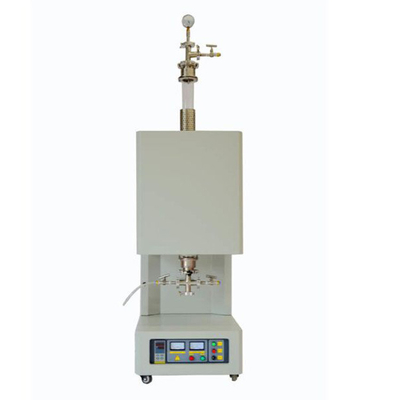

XINYOO CE Vertical Tube Furnace Glass Tempering furnace for making quenching test and temperature measurement





Furnace tube is high pure quartz or alumina, assembled with vacuum sealing flange. The furnace can heat or quench samples fast under vacuum or flowing inert gas situation. It is idea furnace for making quenching test and temperature measurement.



Furnace Chamber: dia60/80mm

Heating zone 300 or 450mm

Max. temperature: 1200 oC

Working temperature: 1100 oC

Temperature control: 30 segments programmable and PID auto control.

Heating rate: 0~20 oC/min.

Temperature accuracy: +/-1 oC

Heating elements: Fe-Cr-Al-Mo wire

Furnace structure: double shell with fan cooling

Rated Power: 2.5KW









































Standard accessory:

Tube plug 4pcs, thermocouple 1pc; quartz tube 1pc; vacuum pump 1 set; Sealing flange 1 set; vacuum gauge 1pc



Standard package included with the furnace





Part description Quantity
Thermal couple 1 pc
Stainless steel hook 1 pc
Thermal gloves 1 pair
Operation manual 1 pc





Package: Plastic paper inside, Polyfoam filled, Wooden box outside.

Payment: L/C T/T, West union,etc.

Shipping and Delivery: by air , in 15 days after receiving the payment



Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.

Related products



 Vacuum Tube Furnace Rotary Tube Furnace Vertical Tube Furnace CVD Furnace
Multi Heating Zones Tube Furnace 360 Degree Rotary Tube Furnace RTP Annealing Tube Furnace PE CVD Furnace




Company Information

Nanyang Xinyu New Material Technology Co., Ltd is a professional Heat treatment furnace manufacture which with more than 11 years experiences.

We have Professional technical engineers team, complete scientific management system, standard workshop and strict quality-monitoring framework.

Our furnaces have been exported to more than 30 countries and with good feedback from our customers.



Mainly products:

  Car bottom furnace

  Vacuum furnace

  Tube furnace

  Muffle furnace

  Atmosphere furnace

  Crucible furnace

  Bottom loading furnace

  Dental sintering furnace

  Etc.





Certifications



FAQ

1. Q:Are you muffle furnace manufacturer?

    A: Yes, we are professional muffle furnace manufacturer of China.



2. Q:What kind terms of payment can be accepted?

    A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.



3. Q: Can I ask for customized furnace?

    A: Yes, customized furnace is accepted.



4. Q: What about the delivery time?

    A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.



5. Q: What about the guarantee period?

    A: The guarantee period is 12 months.



6. Q: What about the Minimum Order Quantity?

    A: The MOQ is 1 pcs
