Inicio /Productos/horno fusorio de cristal/Advanced Vacuum Spark Plasma Ceramic Sintering Machines Repair Shops Latest Version Integral Type Furnace

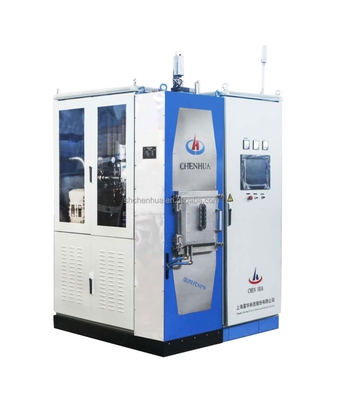

Advanced Vacuum Spark Plasma Ceramic Sintering Machines Repair Shops Latest Version Integral Type Furnace

1.0 set
MOQ
Advanced Vacuum Spark Plasma Ceramic Sintering Machines Repair Shops Latest Version Integral Type Furnace
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Type: Resistance Furnace
Usage: Sintering Furnace
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2021
Warranty of core components: 1 Year
Core Components: PLC, Pressure vessel, Pump
Voltage: 380
Dimension(L*W*H): 1850x2300x2810mm
Weight (T): 1.93 T
Power (kW): 50
Warranty: 12 MOnths
Key Selling Points: Competitive Price
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Other
Showroom Location: United States, Pakistan
Max. temperature: 2300℃ decided by die and sample.
Final vacuum: 10Pa
Sintering sample size: 80mm
Max. pressure: 10T
Output voltage: 10V
Output current: 5000A
Temperature measurement: high accuracy double-color infrared thermometer
Heating rate: Max. 1000℃/m decided by sample and die
Operation mode: PLC plus touching screen
Power supply: IGBT pulse direct-current power
Información básica
Pago y Envío Términos
Packaging Details: Inner package: plastic bag Outer package: standard export wooden case
Supply Ability: 20 Set/Sets per Year
Descripción de producto

SPS Application

SPS fast pressure sintering system is one of the most advanced fast hot press sintering systems in the world,
characterized by the fast sintering speed and high density sintering. It is the most powerful tool used to sinter the nanophase material, gradient functional material, mesoporous nanoscale thermoelectric material, rare earth permanent magnetic material, alloy glass nonequilibrium material and biological material.
Such as: Metals, Ceramics, Oxides, Carbides, Ntrides, Borides, Fluorides, Metallic ceramics, Metallic compounds.
Product Description
Specification
Model
Power
Output Voltage
Output Current
Max. Temperature
Max. Pressure
Sample Size
Final Vacuum
SPS-10T-5-IV
50KW
10V
5000A
2300℃
10T
Ø30mm
10Pa
Company Profile
Shanghai Chenhua Science Technology Corp. Ltd. (the former Shanghai Chen Hua Electric Furnace Co., Ltd.) with RMB 5 million registered capital established in Jun. 2003, is Shanghai Hi-tech Innovative Enterprise which specializes in producing industrial electric furnace. Nowadays it owns 38 million fixed assets and more than 85 employees.
Headquarters lies in Anting Town Shanghai, two subsidiaries respectively are Zhejiang Chenhua Technology Co., Ltd. with RMB 15 million registered capital and Shanghai ChenAn Electric Furnace Co., Ltd.
Shanghai Chenhua passed ISO900012015 quality system certification. Some of products got CE certified.
Generally, furnace is a non-standard product, it can be customized on your request. Nearly 20 years research, development and design of furnace make us know how to meet customers' requirements according to their necessary information.
Annual production capacity is 500sets of vacuum furnaces and other high temperature equipments.
Quality and competitive price earn your trust.

Service:

Before-sales service:
1 Professional technical advice and support
2 Our factory owning a laboratory providing sample sintering testing and support for you.
A 4th generation SPS sintering furnace, a vacuum hot pressing furnace, a small vacuum graphite tube sintering furnace, a mini vacuum hot pressing sintering furnace and a mini vacuum gas pressing sintering furnace at our laboratory for your testing.
After-sales service:
1 After-sales installation and commissioning
2 After-sales lifelong technical support and spare parts service.

Main Customers:

Just show our main customers. Nearly 90% Laboratories of Chinese Science Universities and Science Research Institutes using our sintering furnace and melting furnace. Our most of enterprise clients can't be shown for business secret.

Customer Visit:

Just show customers visit and inspect their products before shipment
Exhibition
Packing & Delivery
Inner package: plastic bag;
Outer package: standard export wooden case
FAQ
1. How to get the furnace to meet your requirements?
Reply: Furnace is a non-standard product, it can be customized on your request.
2. For the pandemic of Covid-19 all over the word, how to do installation and commissioning of furnace?
Reply: Don't worry, our veteran serviceman will come to your place and do them.
3. How to operate the furnace very well?
Reply: Our veteran serviceman will train your staff and teach them to use and maintain it correctly.
4. During the use, the problem happens how to resolve it?
Reply: Don't worry! By the video or other, our veteran serviceman will help you out.
