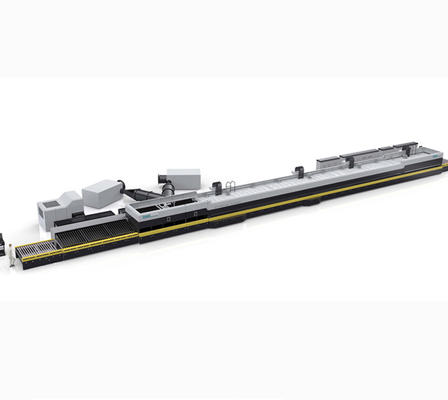

Architecture 1700*2500 24 Meters Flat Continuous 3mm Length JetConvection Photovoltaic Glass Tempering Furnace Low-e

1.0 Sets
MOQ
Architecture 1700*2500 24 Meters Flat Continuous 3mm Length JetConvection Photovoltaic Glass Tempering Furnace Low-e
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Applicable Industries: Manufacturing Plant, Construction works
Showroom Location: None
Condition: New
Machine Type: Glass Tempering Furnace
Production Capacity: 240 loads/h
Voltage: 380v
Power: Depends on the model
Dimension(L*W*H): According to the demands
Weight: kg
Warranty: 1 Year
Key Selling Points: Energy saving
Glass Thickness: 3-19mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: Motor, PLC
Tempering type: 2019 continuous 240/loads 3.2-6mm flat glass tempering furnace
Application range: Architecture, Furniture, Automobile, Household Appliance, Solar Energy
Heating method: Jet Convection
Installed Capacity: 800kVA, 1000KVA, 2000KVA
Maximum glass size: According to your requirements
Minimum Glass size: 300mm*500mm
Glass thickness: 3.2-6mm
Productivity (loads/h): 270-350
Product name: Float Glass Tempering Machine Production Lines
PLC: Schneider
Información básica
Pago y Envío Términos
Packaging Details: 1700*2500 24 meters length JetConvection Low-e flat 3mm continuous photovoltaic glass tempering furnace Package details: In containers. To be packed in standard export packing-suitable for long-distance shipping. Glass tempering furnace will be packed sepa
Supply Ability: 20 Set/Sets per Month glass tempering machine
Descripción de producto
Product Description
High quality customized forced convection flat glass tempering furnacemaquinaria de templadora de vidrio
LD-AL JetConvection PlusTM Continuous Flat Glass Tempering Furnace adopts JetConvection PlusTM and AirStreamTMheating technologies. Glass tempered by this tempering furnace is suitable for flat glass for architectures, furniture, household appliances and solar industry markets. The glass that can be tempered includes: on-line and off-line Low-E (E=0.03) glass, extra ultra clear glass, screen printed glass, pattern glass, tinted glass, clear glass, etc.
Application Fields:Architecture&Furniture, Automobile Industries, Household Appliances and Solar Power Industries, etc.
Glass Can Be Tempered:
On-line and Off-line Low-E (E=0.03) Glass, Ultra Clear Glass, Screen Printed Glass, Pattern Glass, Tinted Glass, Clear Glass, etc.
Model
A1225L24J+
A1525L24J+
A1725L24J+
Max.size
1250x2500
1500x2500
1700x2500
Min.size
200x400
200x400
200x400
Thickness range
3.2-6
3.2-6
3.2-6
Productivity(5mm)
240
240
360
Installed Capacity
2400kVA
3000kVA
3200kVA
Detailed Images
Longer heating and tempering sections ensure that glass sheets can be heated to the correct temperature and that it can be tempered and cooled quickly without oscillation.
Continuous tempering technology ensures much higher productivity, suitable for tempering large volumes of flat glass sheets for the architectural, furniture, household appliances, automotive and solar industry markets.
Continuous running blowers ensure energy savings
The built-in optimization algorithm and the computer fuzzy temperature control modules of the PID database, together with the frequency control of the blowers, assure that both heating and frequency profiles can be customized and optimized.
Company Profile
LandGlass Technology Co., Ltd., with the manufacturing plant of 22500 m2 and research base of 6000 m2, is a hi-tech enterprise specialized in developing, manufacturing glass tempering furnaces and tempered vacuum insulated glass. LandGlass' products have been awarded with 3C, CE,UL certification and so on. Moreover, LandGlass owns hundreds of patented technologies and won the National Patent Gold Award for two consecutive years, becoming the first enterprise ever that won a Gold Award consecutively in China.
R&D
After many years of development, LandGlass has set up a R&D facility with a complete range of equipment covering over 20,000 square meters. We have a professional team of researchers and developers characterized by deep technical knowledge and a high capacity for innovation. Because of our commitment to do the best job possible in terms of quality and innovation, we have cooperated with several universities to keep learning, researching and ultimately growing.
Service
Pre-sale Service
LandGlass’s professional engineer’s team will provide you with an all-round and timely service before your choice. It includes:
1. Help the customer choose the most suitable tempering line according to the target market and production volume requirements.
2. Help the customer choose other glass processing machines.
3. Help the customer arrange all the glass processing machines in the workshop.
4. Arrange visits to other glass processing companies.
After-sale Service
LandGlass’s complete and systematic after-sale service can deliver its technology service quickly to reduce equipment malfunction possibility and shorten downtime. It includes:
① Remote diagnosis to provide zero-distance service;
② Establishing localized service agencies to deliver quick service(Former Soviet Union Areas, Southeast Asia, Europe, U.S.A. & Canada, Australia, Korea);
③ Employing foreign employees to get rid of visa restraints;
④ Preventive maintenance service and active communication.
Certifications

Product Certification

Up to now, LandGlass has already applied for several hundreds of patents and several tens of PCT patents. Over ten patents among them have already got authorization in America, Germany and Australia, opening a new beginning for glass machinery industry in China. Meanwhile, LandGlass has been granted China Patent Gold Award consecutively in 2012 and 2013, making LandGlass a miracle in China’s glass industry.
Packing & Delivery
Package details : In containers.To be packed in standard export packing-suitable for long distance shipping.
Glass tempering furnace will be packed separately and it will be assembled together at customer's factory.
Exhibition
Major Exhibition of LandGlass

China Glass
ZAK Glass Technology
Glasstech Asia
GlassBuild America
Fenestration Bau China
Glass Istanbul Expo
GlassTec
Customer and partner
LandGlass around the world
At present, more than one thousand LandGlass tempering furnaces are in operation from North and South America, to Europe, Africa, the Middle East, Asia and Oceania.
The products of LandGlass family have found a good sale in dozens of countries and regions: and the leading glass processing enterprises from all over the world are working together with LandGlass to optimize the quality of safety glass with advanced tempering technology.

LandGlass's marketing networks around the globe can promptly respond to your demand for technological solutions by offering opportunity for visiting the workshop nearest to you or operating the equiipment to gain first-hand and authentic information about the performance of the product.
If you are interested in our glass tempering furnace, please feel free to contact us.
