Machinery Repair Shops 1T Intermediate Frequency Induction Steel Melting Furnace

1.0 Sets
MOQ
$200,000.00(>=1 Sets)
Precio
Machinery Repair Shops 1T Intermediate Frequency Induction Steel Melting Furnace
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New, New
Type: Induction Furnace, Induction furnace
Usage: Melting Furnace, high-frequency induction furnace
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Voltage: 380V, Depending on production
Dimension(L*W*H): Customized
Weight (T): 1 T
Power (kW): 600
Warranty: 1 Year
Key Selling Points: Competitive Price
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Energy & Mining
Showroom Location: None
Name: 1T Intermediate Frequency Induction Steel Melting Furnace
Melting capacity: 1T
Color: Support Customized
Power: Variable
Output DC current: 300A
Max. output voltage: 750v
Información básica
Pago y Envío Términos
Packaging Details: Wooden box, naked
Supply Ability: customized
Descripción de producto
Product Description

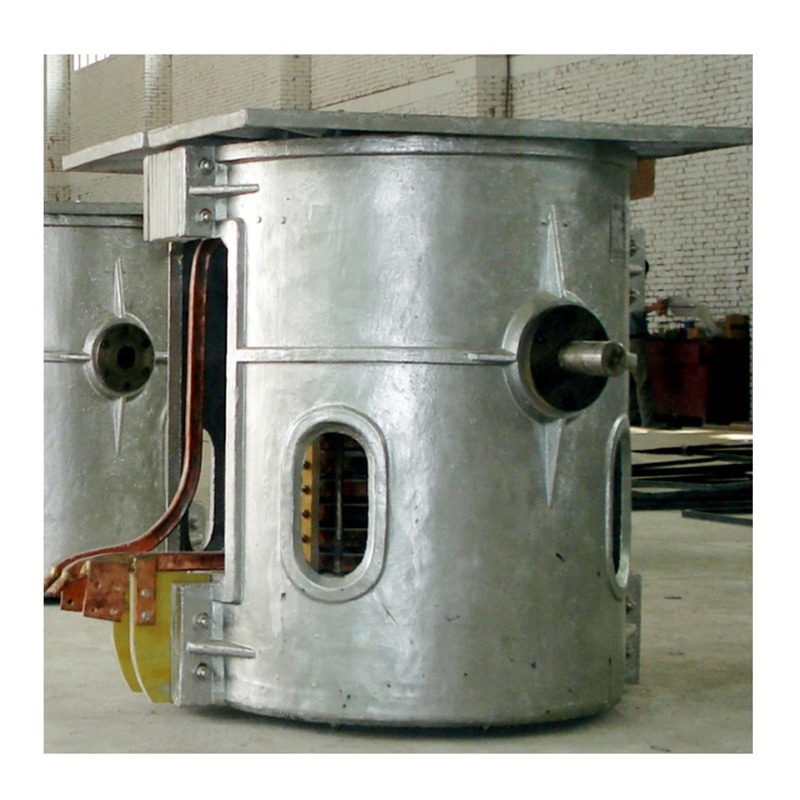

1T Intermediate Frequency Induction Steel Melting Furnace

The melting furnace mainly composed of power control cabinet and melting furnace body.

* The equipment can meet 24 hours of continuous work.

* It have self-test function and leaking alarm device.

* Real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase
information.

* A set of medium frequency furnace main supply range

Induction Melting Furnace:
1.It has the bottom of the oxygen blowing, reducing carbon, slagging function.
2.Cyclone type smoke hood has excellent dust absorption , thermal insulation effect and take up a small space.
3.Long service life.
Power Supply:
1.The utility model has the advantages of obvious energy saving effect and 20% saving compared with common equipment.
2.It can achieve that one power supply cabinet for two furnaces.Transformer utilization rate is high.
3.The two furnaces can cast simultaneously and also can supply continuously molten steel casting.
4.Arbitrary power allocation, starting rate of 100%
Closed type cooling tower:
1.Heat exchanger:The materials of coil group is high quality of T2 depickling copper tube or stainless steel pipe .Set water tank
2.and the tower body is made of aluminum zinc steel plate plate and the service life is over 15years.
Tilting Reducer:
1.The tilting reducer is equipped with three-stage turbine speed. With good self-locking and stable rotary performance.
Capacitor Bank :
1.The double-layer mica insulation technology is used for the insulation treatment of the capacitor.
2.Even if water is sprayed on the capacitor accidentally, the insulation strength of the cabinet can be ensured.
Technical Parameter of Induction Melting Furnace
NO.
Item
Parameters
General Parameter
1
Rated capacity
1000KG
2
Tilting method
Electric mechanical tilting
3
Tilting angle

≧95 degree
4
Melting time

Approx 80-120min (for iron)
5
Furnace structure
Aluminium outer shell
Electronic Parameter
Input current
880A
1
Rated power
600kw
2
Rated Frequency
1000HZ
3
Input voltage
380V
4
Voltage for furnace body
1500V
Cooling System
1
Input water pressure
0.2-0.3Mpa
2
Input water temperature
40℃
3
Output water temperature
≦55℃
4
Cooling water consumption
50M3/h
Specification
item
Value
Place of Origin
China
Brand Name
Yushun
Name
1T  Intermediate Frequency Induction Steel Melting Furnace
Condition
New
Melting rate
<40min
Voltage
Depending on production
Weight
Variable
Input current
240A
Application
Melting metal
Power
Variable
