Inicio /Productos/Fuego de fusión de metales/Mini Portable Forging Gold Melting Furnace Heating Melting Refining Used Induction Smelting Furnace

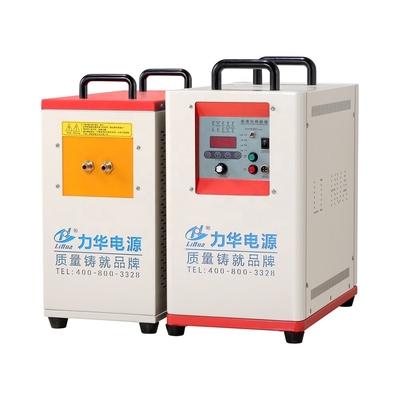

Mini Portable Forging Gold Melting Furnace Heating Melting Refining Used Induction Smelting Furnace

1 Set
MOQ
$2,700.00(1 - 4 Sets) $2,430.00(5 - 9 Sets) $2,160.00(>=10 Sets)
Precio
Mini Portable Forging Gold Melting Furnace Heating Melting Refining Used Induction Smelting Furnace
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Type: Induction Furnace, induction heating machine
Usage: Melting Furnace, gold/ silver/ copper/ steel/ aluminium
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Weight (T): 0.07 T
Power (kW): 15
Warranty: 1 Year
Key Selling Points: Multifunctional
Applicable Industries: Machinery Repair Shops, Manufacturing Plant, Energy & Mining
Showroom Location: None
After-sales Service Provided: Engineers available to service machinery overseas
Application: Heating/ melting/ forging
Certificación: CE ISO
Voltage: 380V 50Hz 3Phase/Customized
Advantage: High Effciency
Package: Plywood Case
Name: Mini portable gold melting furnace
Keyword: refining used induction smelting furnace
Información básica
Certificación: CE ISO
Pago y Envío Términos
Packaging Details: 1. Plywood or wooden case 2. Adhesive wrap to prevent scratches 3. Plastic film to keep the machine together 4. Foam plate and block to prevent shake 5. Other customer's requirements
Supply Ability: 500 Set/Sets per Month source factory
Descripción de producto
Product Description
■ LIHUA medium frequency induction heater, adopts IGBT conversion and power regulation, designs full range of protection function, such as over current, water lack, over heating, over voltage, short circuit, phase lack and so on, greatly improve reliability of equipment. ■ Our medium frequency induction machine adopts the traditional parallel resonance circuit, easy to match other equipments and design induction coil, the actual output power of the machine can be adjusted to more than 80%. ■ There are many different kinds of displays such as current, voltage, time, make working situation visual. ■ Ultra small volume, light weight, removable, covers an area of less than 1 square meters, save 10 times production space for customers. ■ 100% full loading, 24 hours non-stop working. ■ Heating speed is fast, less material elements burning, energy saving more than 20%, greatly reduce costs. ■ Medium frequency induction heater mainly used for deep heating or diathermy, such as bar hot forging, metal smelting, mould whole temper treatment and preheating before welding etc.
Front Side
Back Side
Product Paramenters
Medium Frequency Induction Heating System
Model
LHM-15AB
LHM-25AB
LHM-35AB
LHM-45AB
LHM-70AB
Input voltage
100V, 110V, 115V, 120V, 127V, 200V, 220V, 230V, 231V, 240V, 380V, 480V
Output power
15kw
25kw
35kw
45kw
70kw
Frequency
2-20Khz
2-20Khz
2-20Khz
2-20Khz
2-20Khz
Output current
1-35A
1-50A
1-70A
1-100A
1-130A
Timing
0.1-99.9s
0.1-99.9s
0.1-99.9s
0.1-99.9s
0.1-99.9s
Cooling water
0.08-0.16Mpa
9L/min
0.08-0.16Mpa
9L/min
0.08-0.16Mpa
9L/min
0.08-0.16Mpa
10L/min
0.08-0.16Mpa
9L/min
Alarm tempreture
40°C
40°C
40°C
40°C
40°C
Generator weight
37.5kg
37.5kg
37.5kg
54kg
80kg
Transformer weight
32.5kg
32.5kg
32.5kg
42.5kg
60kg
Generator dimension (mm)
550*280*540
550*280*540
660*330*580
660*330*580
730*350*630
Transformer dimension (mm)
580*240*520
580*240*520
580*240*520
580*240*520
580*240*520
Model
LHM-90AB
LHM-110AB
LHM-160AB
LHM-200AB
LHM-250AB
Input voltage
100V, 110V, 115V, 120V, 127V, 200V, 220V, 230V, 231V, 240V, 380V, 480V
Output power
90kw
110kw
160kw
200kw
250kw
Frequency
2-20Khz
2-20Khz
2-20Khz
2-20Khz
2-20Khz
Output current
1-180A
1-220A
1-320A
1-400A
1-500A
Timing
0.1-99.9s
0.1-99.9s
0.1-99.9s
0.1-99.9s
0.1-99.9s
Cooling water
0.08-0.16Mpa
10L/min
0.08-0.16Mpa
12L/min
0.08-0.16Mpa
15L/min
0.08-0.16Mpa
20L/min
0.08-0.16Mpa
25L/min
Alarm tempreture
40°C
40°C
40°C
40°C
40°C
Generator weight
90kg
100kg
120kg
200kg
200kg
Transformer weight
65kg
65kg
75kg
100kg
100kg
Generator dimension (mm)
730*350*630
800*420*880
820*420*880
780*500*880
780*500*880
Transformer dimension (mm)
580*400*530
580*400*530
580*400*530
580*400*530
580*400*530
Application
WELDING
QUENCHING
ANNEALING
MELTING
FORGING
SHRINK FIT
Recommend Products
Production Process
Company Profile
LIHUA company has been committed to the development, production as well as the sales of induction heating equipments since 2005. Our own garden-style factory covers an area of 10,000 square meters. The company has undergone 8 times production process optimizations and 5 times production equipment updates. LIHUA obtained the honor of national high-tech enterprise and more than 60 patent certificates. We provide efficient and diversified inducting heating solutions tailored for the needs of customers. In response to different voltage levels in different countries, induction heating equipment with corresponding input voltage has been developed. The products are equipped with English manuals. Our technicians will serve you online 24 hours before and after sale. You can benefit from our experience in the field of induction heating. Your success is LIHUA's goal!
Customer Photos
FAQ
Q: Why use induction heating? A: ★ Improved process efficiency ★ Localized, constant and precise heating ★ Temperature control ★ Energy saving ★ Possibility of integration into production lines ★ Best quality and yield/performance ★ Pollution free, fast and secure technology ★ Improved working environment Q: How to choose a suitable induction heater? A: Induction heaters have many different modles with different power and frequency. 1. The higher power, the faster of the heating speed. so if you want to heat fast then you'd better choose a high power induction heater. 2. The higher frequency, the lower of the heating layer. So for some surface hardening, we suggest use a higher frequency heater, for some entire heating (like forging and melting) we suggest to use low frequency heater. 3. If you are not sure of which model is suitable for your work, please ask our salesman for suggestion before you place an order.
