High Efficiency High Tech Melting Furnace Stainless Steel Small Scale Stainless Steel Melting Furnace

1 Set
MOQ
$6,200.00(>=1 Sets)
Precio
High Efficiency High Tech Melting Furnace Stainless Steel Small Scale Stainless Steel Melting Furnace
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Type: Induction Furnace
Usage: Melting Furnace
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Induction Coil
Voltage: 380V
Dimension(L*W*H): Customization
Weight (T): 1 T
Power (kW): 400
Warranty: 1 Year
Key Selling Points: Energy saving
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Retail, Energy & Mining, Food & Beverage Shops
Showroom Location: Viet Nam, Indonesia, Russia
Machine Item: Electric Smelting Furnace
Application: Melting Metal
Melting Material: Scrap Aluminium Smelting
Keyword: Induction Melting Heating
Input Voltage: 380V
Capacity: 50kgs-5000kgs
Function: Melting Aluminum Alloy
Melting Time: 50-80 Minutes
Feature: High Efficiency
Final product: Aluminum Billets
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location: Viet Nam
Certificación: ISO 90001, CE
Información básica
Certificación: ISO 90001, CE
Pago y Envío Términos
Packaging Details: Standard Wooden Cases Packaging for Exporting 1. 20GP/40GP Full Container 2. Photos and Vedios during loading the container.
Supply Ability: 20 Set/Sets per Year
Descripción de producto
We are factory,we can produce 50Kg-20T metal melting furnace.
We can provide on-line factory viewing.
Product Description

Aluminium Shell Furnace

Steel Shell Furnace

Technologicalt Process
The medium frequency smelting furnace mainly used for melting and refining all kinds of scrap metal, iron, stainless steel, copper, aluminum. This furnace can smelting the scrap iron, like scrap auto parts, scrap steel bars, scrap screws, iron leftover materials etc.

Product Features

1. Various capacity 0.1T -20T, fast melting speed, 40-60 minutes /pot
2. Have self-test function, real-time supervise.
3. Have leaking alarm device, PLC control, easy to operate.
4.The control cabinet is standard of the automobile line, easy to maintain
5. The water way uses carbon-free hose , water separetors and clips use 304 stainless steel
6.Can meet 24 hours continuous work.
7. High efficiency , low cost , easy to maintain, energy saving ,safe and stability.
Products Parts Display

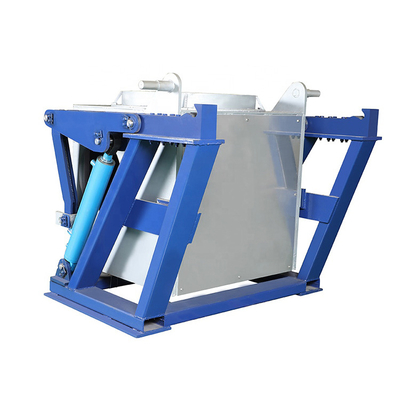

The melting furnace mainly composed of power control cabinet and melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information.
The furnace body is made by thick aluminum alloy shell to reduce the magnetic leakage and ensure furnace body strength.
The thick T2 standard copper tube is taken use for induction coil.
The main control board is microcomputer control, one - key zero - pressure start.
The separate insolation design of water pressure meter can make the user convenient and intuitive to monitor the water pressure
The double-layer mica insulation technology is used for the insulation treatment of the capacitor.
Even if water is sprayed on the capacitor accidentally, the insulation strength of the cabinet can be ensured.
Furnace Tilting Reducer is used to control the rotary of the furnace body. The tilting reducer is equipped with three-stage turbine speed. With good self-locking and stable rotary performance.
Basic Parameters
Capacity
Power
Voltage
Cabinet size (mm)
Cabinet weight
Furnace Body weight
100KG
100KW
3*380V
1000*800*1700
0.5T
0.3T
250KG
250KW
3*380V
1300*850*2000
0.8T
0.7T
500KG
400KW
3*380V
1300*850*2000
1T
1T
1T
800KW
3*660V
1300*850*2000
1.2T
1.3T
1.5T
1000KW
3*660V
1300*850*2000
1.2T
1.8T
2T
1500KW
3*660V
2400*1000*2000
1.6T
2T
5T
3000KW
6*950V
2400*1000*2000
2.5T
4.5T
10T
6000KW
6*1250V
3500*1000*2200
3T
23T
15T
10000KW
6*1250V
4000*1200*2200
3.5T
32T
