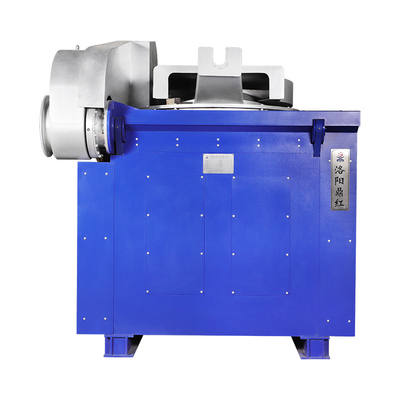

Good Price 500kg Intermediate Frequency Induction Melting Furnace Energy Saving Metal Melting Furnace Machine For Sale

Induction furnace with Steel Shell

1. Environmental protection, Energy saving ,Safety,Stability
2. The life of induction furnace with steel shell is longer than aluminium shell due to the magnetic losing is less.
3. The heating losing be decreased and the safety be increased by the furnace coving using.
4. Cyclone dust removal cover have excellent effect of vacuuming, temperature keeping and space saving ,the cover can tilting and suspending in any location.
5. The yoke made of silicon steel sheet can shield the magnetic of induction coil . the magnetic losing be decreased .the heat efficiency be increased and the output are more by 5%-8% by using yoke.

Product Advantage

1.Cooperating with researching and scientific institute, our factory designs and manufacture most advantage induction furnace and own 24 patents.
2.We choose high quality accessories ,which are made by domestic famous brand.
(1) Yoke: Silicon steel sheet with 0.27mm thick and high magnetic perme ability produced by Wuhan Iron and Steel Company Limited
(2) Cooper bar: high quality cooper bar producted by CHINACO Luoyang Copper Co., Ltd.
(3) Wall thickness of induction coil : 5mm-8mm
(4) Thyristor: Produced by TECHSEM .

Rotary Zero-gap technology :

The furnace body rotates without gaps during the tilting process, which can effectively prevent molten iron liquid enters the furnace body ,and protect the equipment ruuning safely

Side plate structure of furnace body :

The side plate structureof the furnace body adopts the one-piece forming process of the integral steel plate, which is sturdy and durable.

High quality yoke :

Magnetic yoke is using silicon steel sheet with 0.27 thick and high magnetic perme ability produced by Wuhan Iron and Steel Company Limited,which effectively prevents expansion due to heat of the stainless steel.

Dust removal cover :

Cyclone dust removal cover has excellent effect of vacuuming, temperature keeping,and space saving. The cover can tilting and suspending in any location.

Material of induction coil :

Material of induction coil producted by CHINACO Luoyang Copper Co., Ltd.
Wall thickness of induction coil : 5mm-8mm
3-layer insulation treatment

Stainless steel water separator :

304 stainless stell shunt

Applications of induction furnace:

Smelting and heating of non-ferrous metals such as cast copper, gold, silver, aluminium, aluminium alloy, iron, steel, stainless steel, ferrosilicon, ductile iron, etc.
