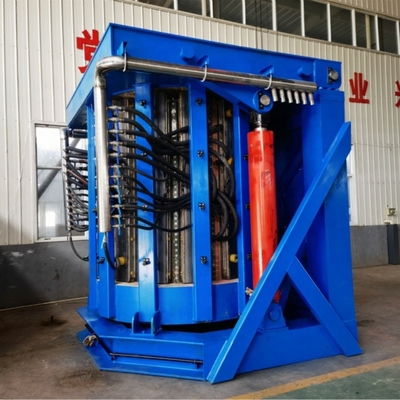

The medium frequency induction melting furnace has the advantages of energy saving, high efficiency, small floor space and simple operation for metal steel of less than 20 tons. It has been popular in China and abroad in recent years!
Steel scrap induction induction melting furnace control cabinet features:
1. Constant power output ensures that the power transformer can be utilized with 100% capacity.
2. The power factor is always greater than 0.95, no complicated compensation system is required.
3. Zero voltage scanning soft start mode, can be started or stopped at any time in any state, no impact on the power supply;
4. Wide frequency adaptation range, rapid melting, low production cost, uniform temperature and easy control;
5. The furnace body is easy to turn over and tilt, and the metal composition is uniform;
6. Small footprint, effective management of higher harmonics.
The medium-frequency power cabinet copper busbars and copper pipes use domestic famous brands, and the copper pipes are sandblasted, passivated, and produced. The power cabinet components are arranged reasonably, with wiring and wiring specifications, and are easy to maintain. It is also easy for maintenance personnel to view all service points.
The medium-frequency power cabinet copper busbars and copper pipes use domestic famous brands, and the copper pipes are sandblasted, passivated, and produced. The power cabinet components are arranged reasonably, with wiring and wiring specifications, and are easy to maintain. It is also easy for maintenance personnel to view all service points.
Specification And Technical Parameter | ||||||||
Model | MF power | Input voltage | DC Current | MF frequency | ||||
GW-200 | 200kw | 3ph,380V | 400A | 2-10KHZ | ||||
GW-300 | 300kw | 3ph,380V | 600A | 2-10KHZ | ||||
GW-400 | 400kw | 3ph,380V | 800A | 2-10KHZ | ||||
GW-500 | 500kw | 3ph,380V | 1000A | 2-10KHZ | ||||
GW-800 | 800kw | 3ph,380V | 1600A | 2-10KHZ | ||||
GW-1000 | 1000kw | 3ph,380V | 2000A | 2-10KHZ | ||||
GW-1500 | 1500kw | 3ph,380V | 3000A | 2-10KHZ | ||||
GW-2000 | 2000kw | 3ph,380V | 4000A | 2-10KHZ |
