Inicio /Productos/Horno eléctrico de recocido/Ceramic Ce Approved Industrial Electric Bogie Annealing Hearth Furnace For Industrial Purpose

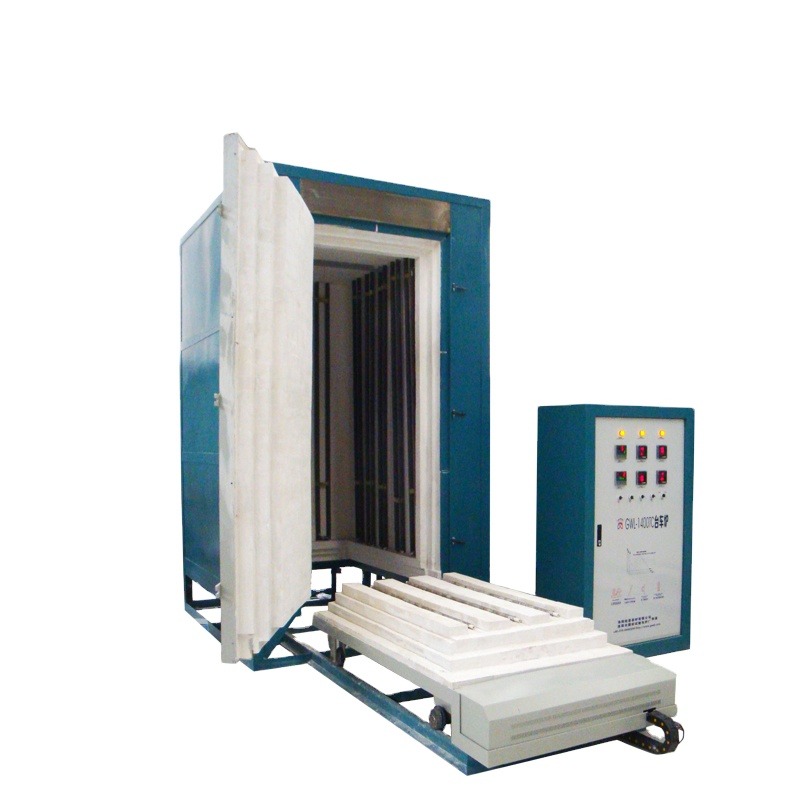

Ceramic Ce Approved Industrial Electric Bogie Annealing Hearth Furnace For Industrial Purpose

1 Set
MOQ
Ceramic Ce Approved Industrial Electric Bogie Annealing Hearth Furnace For Industrial Purpose
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Classification: Laboratory Heating Equipments
Model Number: TC-2
Product name: Bogie Hearth Furnace
Application: Ceramics, annealing, and various sintering processes
Max temperature: 1700c(Maximum Customize Temperature)
Working temperature: Depends on Customer Requirements
Chamber size: Customizable
Model: GWL-TC-2
Temperature control: 1C/-1C(Depends on the chamber size)
Heating Rate: Max 20C/min
Warranty: 1 Year
Furnace Control Method: Temperature controller or touch Screen Control
Información básica
Model Number: TC-2, GWL-TC-2
Pago y Envío Términos
Packaging Details: The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the the container is too tight, we will use pe film for packing or pack it according to the real situations.
Supply Ability: 100 Set/Sets per Month Provide electric furnace customization and OEM service
Descripción de producto
Product Description
Product Name
Bogie Hearth Furnace
Material
Aluminum Fiberboard(Refractory materials) + Sic&Mosi2 (Heating elements)+Mullite bricks
Loading Capacity
3-5 Ton (Special requirements can be customize)
Platform Moving Method
Electric drive
Package
Composite wood packaging (fumigation free), or other wooden export packaging. Ensure the safety of the goods.

  • Heating elements and Furnace Structures

Using Sic or Mosi2 as the chamber heating elements(1200c above the silicon carbide rod(Sic)or silicon molybdenum rod(Mosi2)will be using).The loading platform also has the heating ability, at the same time it has the fine loading and supporting capacity.The furnace door and the bottom are designed as a whole, the opening mode is electric, the motor drives the reducer to drive the loading platform in and out, and the finite bit switch is installed.The furnace mouth and the charging platform are closed by the cross of the steps. The upper and lower sides of the charging platform have angles. The opening Angle of the charging platform increases and the closing Angle of the charging platform gradually decreases.

  • Furnace Control Method

Using intelligent temperature control instrument, for standard, artificial intelligence PID regulating APID or MPT regulate a variety of ways, a self-tuning, self-learning function, without overshoot and owe the excellent control characteristic, have 30 periods of program control function, can realize arbitrary slope rises, temperature control, have to jump (cycle), such as running, pause and stop programmable/operational command, and allowed to modify the program at any time in the operation of the control of the program; The artificial intelligence adjustment algorithm with the function of curve fitting can obtain smooth and smooth curve control effect.

Super Alloy Resistance Wire

Ni-crresistancewire (contains molybdenum)has the characteristics of high resistivity,Good corrosion resistance at high temperature, especially suitable for use in an atmosphere containing sulfur and sulfide, low resistance temperature coefficient, and high operating temperature. normally maximum using temperature is under 1200c below, Continuous is under 1100c.

Silicon carbide rod(Sic)

Silicon carbon rod is made of high purity green hexagonal silicon carbide as the main raw material, according to a certain ratio of processing and blank, after 2200℃ high temperature silicon recrystallization sintering and made of rod, tubular non-metal high temperature heating element.It is usually used below 1600 degrees Celsius.

Silicon molybdenum rod(Mosi2)

Silicon-molybdenum rod resistive heating element, based on molybdenum disilicide, resistant to high temperature and oxidation. When used in a high-temperature oxidizing atmosphere, a layer of bright and dense silica (SiO2) glass film is formed on the surface, which can protect the inner layer of the si-mo rod from oxidation.Normoly using under 1800 degrees Celsius.
Product Usage
Packing&Shipping
The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the container is too tight, we will use pe film for packing or pack it according to customers special request.
Shipment by sea, by air or by express as per customer's requirement.Our company has established a cooperative relationship with many logistics enterprises to guarantee the safe transportation of goods and the time limit.
Company Introduction
Luoyang Juxing Kiln Co., Ltd which is a manufacturing company that manufactures good & high-quality electric resistance laboratory furnaces and industrial kilns. The company provides the customized products and OEM service. The factory owns proficient skills and an updated machine. the company has passed the IOS quality management system. and some products have passed the EU CE certificate.

Our Services & Strength

Our product has widely used in ceramics, metallurgy, electronics, glass, luminescent materials, non-ferrous metals, chemical industry, machinery, refractories, new materials development, special materials, building materials, and other fields.And can be customized according to the customer's process requirements.
All kinds of electric furnaces have a high degree of automation and are at the leading level in China. They are sold to more than 20 provinces, municipalities, autonomous regions and special zones in China, national key colleges and universities, national key laboratories, Chinese Academy of Sciences, and High School Research Institute. Countries such as North America, Russia, the Philippines, and Japan. has a high reputation in the industry.
Certifications
Exhibition
Related Products
FAQ
Q: IF I NEED SPECIAL DESIGN ABOUT FURNACE CHAMBER DOES YOUR COMPANY CAN OFFER IT?
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.
Q:IF WE PURCHASE YOUR PRODUCT WOULD YOUR COMPANY GIVEN ANY TRAINING OR TECHNICAL SUPPORT?
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training
about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.
Q: HOW IS YOUR PRODUCT AFTER-SALE GUARANTEE?
A: We provide one-year service for our product (except the heating element), the heating element we provide three-month service.And also, the engineer available doing service overseas.
Q: YOUR PRODUCT WITH ANY ACCESSORIES?
A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers,
High-Temperature Gloves).
Q: HOW TO CONTACT YOUR COMPANY?
A: Our Company address is: Yujia industrial zone, Wuhan south road, Jianxi District, Luoyang Henan, China.
