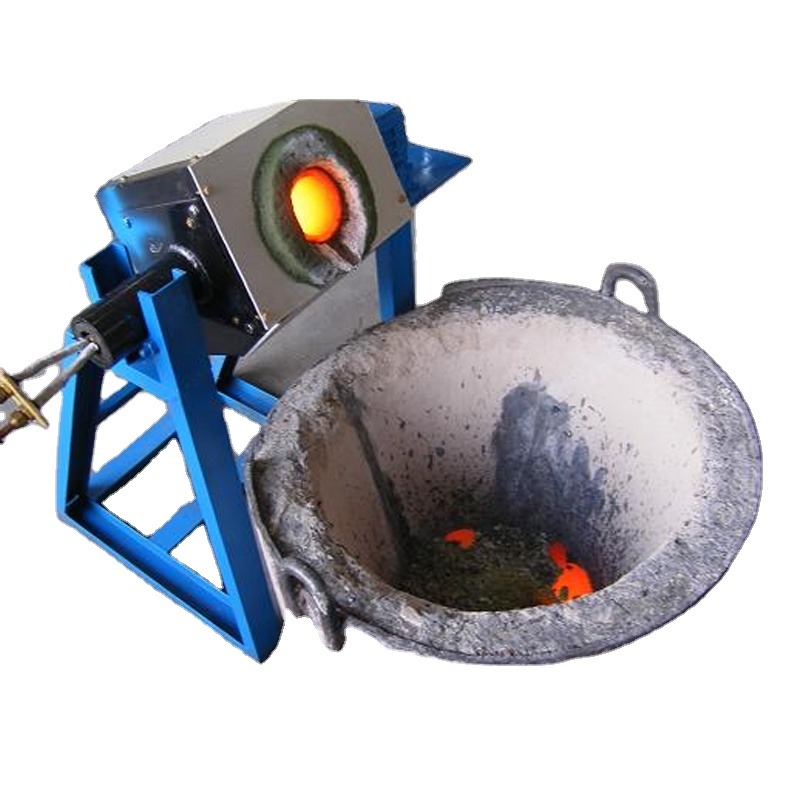

Metallurgical Industry Lab Using Recycling Electric Induction 100kg Steel Melting Rotary Furnace

Aluminum shell steel melting furnace

1.Product structure

Smelting principle :through the magnetic field induction heating principle of eddy ,the electric current through the coil , generating magnetic field and melting metals into liquid by induction heating, Then use all kinds of mold design the product.

2. Including part

One set of equipment including :

Power Supply Cabinet : 1set                                 Capacitor Group:1unit

Furnace Body: 2units                                              Crucible Module: 2units

Reduction Box: 1set

3.Basic parameters

1.The mediate frequency electric furnace used to smelting steel, alloy steel, cast iron, stainless steel,

copper, aluminum, zinc, magnesium and other ferrous metals and non-ferrous metals.

2.The equipment used in metallurgical industry, casting industry, forging industry, heat treatment industry,

petroleum machinery industry, mining machinery industry, pipe industry, heat treatment industry, etc..

The medium frequency electric induction aluminum shell furnace hasmany advantages.

1, fast heating speed, little oxidation and decarbonization

Due to the electromagnetic induction heating principle electromagnetic induction, the heat is generated by the workpiece itself ,so the furnace heating speed is fast , oxidation is few, heating efficiency is high.

2, high degree of automation, can realize the automatic unmanned operation, improving labor productivity.

3, uniform heating and high temperature control precision

Uniform heating, ensuring that the heating temperature of the core table is small,and by the temperature control system can accurate control the temperature ensuring product accuracy.

4, induction furnace body replacement is simple

According to the different dimensions of the workpiece, the induction furnace body with different sizes should be configured. Each furnace body is designed with water and electricity quick change joint, so that is easy,convenient and rapid to change the furnace body.

5, complete equipment protection.

The whole machine is equipped with water temperature, water pressure, lack of phase, over voltage, over current, limited voltage / current limit, start over current, constant current and buffer start, make the equipment start steady, reliable and fast, stable operation.

6, low energy consumption, no pollution

Compared with other heating methods, the heating efficiency is high, the energy consumption is effectively reduced, the labor productivity is high, and the equipment is free from pollution, and the equipment meets the requirements of environmental protection

7. 24 hours uninterrupted melting capability.

8. Small covering area,cheap and suit for small scale production.

1.All of goods will be pack in plywood cases packiing with export standard.

2.All goods will be shipped  30 to 45 days after receiving deposit for production.

1.Equipment Installation and training

Our installation and construction team will start equipment installation and commissioning for four weeks on the necessary conditions provided by the buyer;

We will send the engineers to provide the maintenances, repair and operations training for the buyers. The training will run through the entire process of

equipments’ installation and commissioning, and after normal operation, we will provide the proper and safe methods of operation and personal protection knowledge to the operators

;IF final acceptance of the equipment  be make within 30 days after the end of the installation, we will execute the technical agreement signed by the both parties and national standards;

The test items of final acceptance are the followings:

   1. Check if the delivery scope and technical specifications are same as the technical files signed by the both parties;

   2. Check the various mechanical actions of the equipment;

   3. Safe interlock devices and alarm function test;

   4. Check if the technology performance parameters meet the requirements of "Second, the technical parameters and system overview" at the technical agreement;

Upon the completion of acceptance testing and accepted by both sides, the two sides sign the acceptance agreement;

 2. Warranty Period

 The seller guarantees that the quality guarantee period is 12 months in the condition of equipment and materials without problems;

 This 12-month period counts as the earlier one of the following two time points:

   1. It should account at the date of acceptance of goods or six month after the goods at the buyer’s plant;

   2. If the debugging is caused by the seller, the warranty period will extend its considerable time;

3. After sales Services:

  After receiving the customer service notification ,we will respond within four hours, and  arrange maintenance engineers arriving at the scene within 48 hours

  under the permission of objective traffic conditions.

   1.During the warranty period under all normal usage, once the breakdown occurs,we  are responsible for free repair of damaged parts,

   and will provide the free parts to users (including shipping).The seller does not bear the indirect loss compensation;

   2.After the warranty period,we offers the free preventive maintenance within two years(excluding materials). Preventive maintenance includes:

   twice per year, one day's device follow-up per time, the routine examination of equipment, the training at the customer’s site;

 The time and the specific content of preventive maintenance work will be agreed by both parties;
