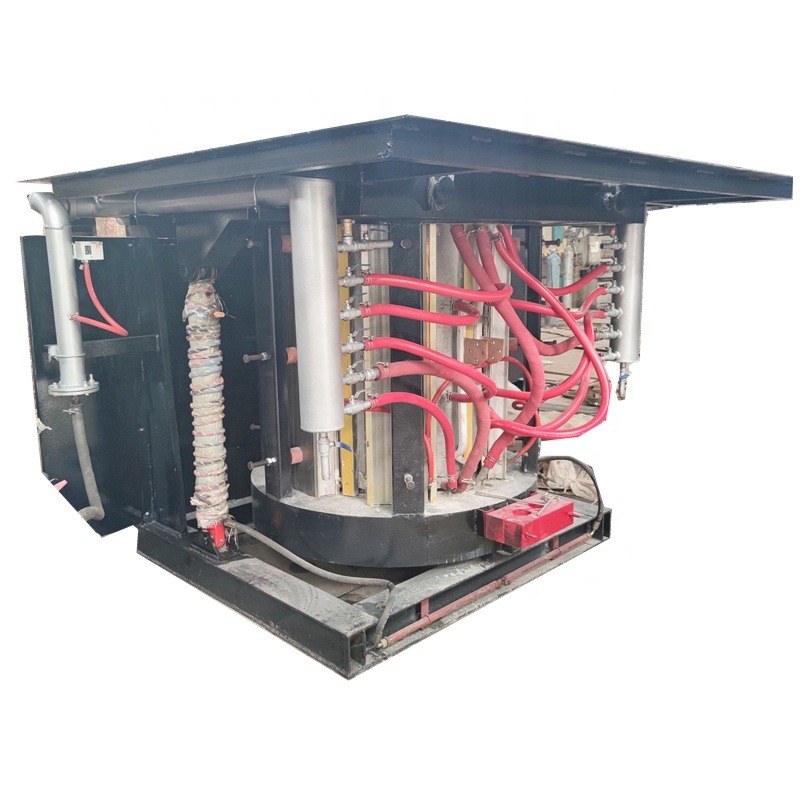

Factory Hydraulic Pouring Cast Iron 2 Ton Induction Furnace For Aluminum

1.0 Sets
MOQ
Factory Hydraulic Pouring Cast Iron 2 Ton Induction Furnace For Aluminum
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Type: Induction Furnace
Usage: Melting Furnace
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 1 Year
Core Components: thyristor, capacitor
Voltage: 3 Phase 660V
Dimension(L*W*H): 1250mm*1250mm*2800mm
Weight (T): 15 T
Power (kW): 1500
Warranty: 12 Months
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant
Showroom Location: Egypt, Indonesia, Thailand, Uzbekistan
After-sales Service Provided: Engineers available to service machinery overseas
Color: Support Customized
Max temperature: 1750 centigrade
Melting Material: Steel Copper Stainless Steel Lead
Max melt efficiency: 2.3T per hour
Power Supply Cabinet: KGPS-1500KW
Furnace body: Two
Furnace material: Bao steel
Información básica
Pago y Envío Términos
Packaging Details: Packaging: Plywood Case or as customers's request. Wooden case dimensions according to the specific product. Because of unit plant will be heavy, A wooden case contains one plant
Supply Ability: 300 Set/Sets per Year
Descripción de producto
Product Description

Product Description

Luoyang Wanle 2000KG Per Melt Automated Pouring Suited For Die Casting Operations Excellent Furnace Metal Smelting Plant include two furnace body; IF power supply units; Reducer or Hydraulic station; Crucible; Water Cooled Cable.

Furnace body uses aluminium alloy material,steel shell type covered magnetic plates, power supply with KGPS standard.

Features: Air-Cooled Design

Automatic Control System
Self-Contained Power Supply
Built-In Digital Temperature Control
Large Diameter Crucible Opening


After-sales service system:
The engineers will be dispatched to install and test after equipment arrive to the customer's working place. And Traind the employee how to maintenance,repair,operate. The training exist in the whole procedure of installing and testing,introduce correct,safe operate and personal protection actions after the equipment operate without any doubt.

About us:

The company established in 1992, as a manufacturer in Luoyang City Of China, has more than twenty years experience of producing electrical equipment. Mainly engaged in Intermediate frequency electric furnace(heating equipment and smelting equipment).Capacity ranges from 0.15 ton to 40 ton. Luoyang Wanle keep up with latest electric induction furnace technologies all the time, 20 minutes once molten with our highest efficiency and have the patent of three rectifier stirring inverter furnace.Except that Chinese domestic market,smelting equipment also exported overseas. have steel bars,copper pipe,cast iron and steel mold turn-key project experience in Africa, Southeast Asia and Middle East Area.


Supplier system:
The plate of furnace purchased from Baosteel Co,. Ltd. and furnace parts produced by renowned groups in China.

NO.
ITEM.
SUPPLIERS AND MANUFACTURERS
1
Silicon controlled
Xiangfan Logefil Semiconductor CO. Ltd.
2
The freewheeling diode
Xiangfan Logefil Semiconductor CO. Ltd.
3
Main Fuse
Cooper Bussmann
4
Resonant capacitor
Xin'An River Power Capacitor CO., Ltd.
5
Filter capacitor
Xin'An River Power Capacitor CO., Ltd.
6
Resistance capacitance
Xin'An River Power Capacitor CO., Ltd.
7
Coil tube T2
Chinalco Luoyang copper CO,. Ltd.
8
Copper bar T2
Chinalco Luoyang copper CO,. Ltd.
9
Hydraulic pump station
YUCI Haydraulic CO,. Ltd.
10
Hydraulic valve station
YUCI Haydraulic CO,. Ltd.
11
Stainless steel pump
Shanghai Kaiquan pump (Group) Co., Ltd.
12
Main switch for power cabinet
Zhejiang TENGEN
13
PLC & HMI
SIEMENS
14
Copper tube closed cooling tower
Wanle Eectrical Equipment Plant
15
Rectifier transformer
Sanmenxia Sanjin Transformer Manufacturing Co. Ltd.
16
Silicon steel sheets
Wuhan Iron and Steel ( Group ) Corp./Baosteel
17
Hydraulic cylinder
YUCI Haydraulic CO,. Ltd.
18
Emergency diesel generator set
YAMAHA
Series inventer electric furnace configuration
NO.
ITEM
QUANTITY
1
DW15 Circuit breaker
2500A*2
2
KK Silicon controlled
2000A/3600V*12
3
KP Silicon controlled
2500A/2800V*16
4
ZK Silicon controlled
2500A/2800V*16
5
ZP Silicon controlled
2500A/2800V*4
6
Reactor (reactance coil inner diameter 360mm)
 2
7
1.6-2000-0.5S Resonant capacitor
28
8
1.2-1850 Filter capacitor
14
9
Induction Copper Pipe (45*30*5)
21
10
Inner Diameter
950mm
11
Furnace height
1750mm
12
500 Squre Meter Cable
5M*8
13
Hydraulic station
250L
14
Furnace Body
2

Produce control system:
There are two departments in this manufacturer, one of them charges for assembling furnace body, other charges for KGPS power supply. All the technical workers have technical certificates who welding and cutting steel plates for furnace body.Mr. Wang is actual president,he knows the technology of intermediate frequency melting furnace and heating furnace, established this company in 1992,and start to research and produce since that year.

Main Features

1) Electric induction melting, Steel aluminium alloy copper brass available.

2) All the smelting equipment&heating equipment has been certificated by ISO9001,SGS,CE.

3) Labor-saving and environmental protection,worker protection.

4) Temperature control system can realize the accurate control of the temperature and improve the product quality and qualified rate.

5) Engineers available to service overseas.


QC System:
The technical person must test the furnace material and parts to ensure its quality.All the melting and heating equipment accordance with national standard strictly in the products produce procedure:
JB4086-85 <Technical Specifications For Electronic Controlled Heating Equipment For Medium Frequency Induction Heating>
GB10067.1-88 <General Part Of Basic Technical Conditions For Electric Heating Equipment>
GB 10067.3-88 <Basic Equipment For Electric Heating Equipment -- Induction Heating Equipment>
GB, 5959.3-88 <Safety Of Electric Heating Equipment, Third Parts, Induction And Conductive Heating Equipment, Induction Melting Special Requirements For Equipment>
GB 5959.1-86 < Safety Of Electric Heating Equipment - Part 1 General Conditions>
Environmetal protection standard promised, Melting and heating efficiency of metal confirmed, worker protection mechanism designed.When the melting metal material with no problem,if the foundry efficiency is not the standard as we said,the problem will be charged and resolved by our side.

Certifications
Detailed Images

Machine Parts

Name: Hydraulic Station

Brand: Wanle

Original: China

Hydraulic station special designed for steel frame induction furnace, after metals melt to liquid, pressure automated pouring. Belongs to automated control systems.

Main Features

Name: Induction Copper Coil
Brand: Wanle
Original: China
Generated current by create an electromagnetic field, melting or heating metal charge material.The amount of melting is determined by the size of the furnace, the power put into the metal, the frequency of the electromagnetic field and the type/amount of metal in the furnace.

Machine Parts

Name: Induction Power Supply Units
Brand: KGPS
Original: China
KGPS-1000KW.KGPS is a medium power 50HZ power frequency alternating current into intermediate frequency (more than 300HZ to 20K HZ) of the power device, the three-phase alternating current and rectified into DC, then the DC power into intermediate frequency current can be adjusted, supplied by frequency alternating current through the capacitor and the induction coil, generating high density in the magnetic induction coil, and cutting metal materials for the induction coil, produce large eddy currents in metallic materials

Main Features

Name: Induction Power Supply Units
Brand: KGPS
Original: China
Panel Button Control,high temperature control precision, temperature with good stability.Record temperature and over temperature sound light alarm with the automatic circular chart recorder, double security control, ensure that the workpiece does not exceed the temperature.

Transmission parts of the furnace are interlocked to prevent accidents caused by misoperation.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.


Storage system: The material enough supplied for producing melting and heating equipement, storaged in the place where is dry and normal atmospheric temperature.

Packaging System:

The whole equipment finished full and completely covered by wooden case to delivery.We promise the package ensure the equipment will never been rusted by water and damaged by crash in the delivery process.

Plywood Case or as customers's request.

Packing & Delivery
Packaging
Size
950mm (L) * 950mm(W) * 1750mm (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
950 mm(L) * 950mm(W) * 1750mm (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Certificated system before delivery: To test the melting and heating function of equipment,or delivery after customers checked the quality.
