Graphene Research University 3200 degrees laboratory graphitization furnace for graphene

1.0 set
MOQ
Graphene Research University 3200 degrees laboratory graphitization furnace for graphene
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Type: Induction Furnace
Usage: Heat Treatment Furnace
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2022
Warranty of core components: 1 Year
Core Components: PLC, Pump, Automatic control system, Integrated power supply system
Voltage: 380V
Dimension(L*W*H): W1300mm*L1500mm*H1800mm
Weight (T): 1.5 T
Power (kW): 80
Warranty: 1 Year
Key Selling Points: Easy to Operate and maintenance
Applicable Industries: Manufacturing Plant, Construction works , Energy & Mining, Industrial, Universtiy, R&D department, Scientific reserch institution
Showroom Location: Saudi Arabia, Thailand, South Korea, UAE, Japan, Australia
Product Nam: Laboratory Furnace
Model: CX-GF-20/30 VT
Max temperature: 3200°C
Working temperature: 2850°C
Heating method: Induction Method
Furnace type: Vertical, top loading
Vacuum system: Vacuum Pump Units
Heating rate: 200°C/min
Application: Graphene Research
Capacity: 10L
Información básica
Model Number: CX-GF-20/30 VT
Pago y Envío Términos
Packaging Details: The normal package is wooden box. If export to European countries,the wooden box will be fumigated.If container is too tigher, we will use PE film for packing or pack it according to customers special request.
Supply Ability: 50 Set/Sets per Quarter
Descripción de producto
Product Description

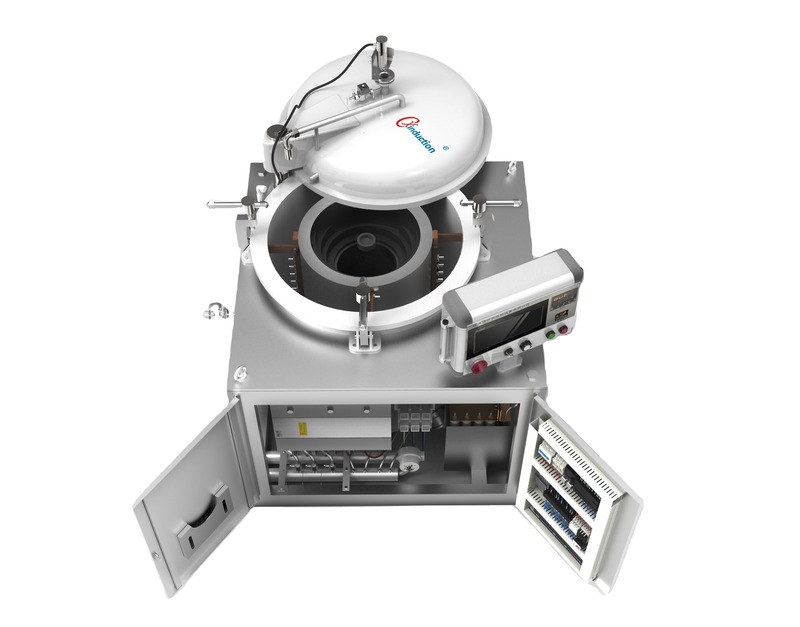

3200C Induction Type Laboratory Vacuum Furnace Small Induction Type Graphitization Furmace
CX-GF- 20/30 VT is vertical top loading induction heating furnace with round hot zone shape. This model is ideal for various research applications and new materials development. Simple operation and easy maintenance process of this furnace, save time and budget in research projects. With maximum operating temperature of 3200 ℃, this model can be used for many applications.
Model
CX-GF 20/30 VT
Configuration
Vertical, Top loading
Max. Working Temperature
3200 ℃
Continuous Working Temperature
≥ 3000 ℃
Usable Space (mm)
Dia. * H: Φ200*300
Heating Power
≤ 60 KW
Frequency
4000 Hz (auto-track)
Ultimate Vacuum
1.2 * 10-3 mbar
Optional High Vacuum
5 * 10-5 mbar
Working Atmosphere
High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2)
Supply Power
3 N/PE, AC/380V, 50/60Hz
Cooling Water Pressure
1.5 - 2.5 bar
Cooling Water Temperature
≤ 28℃
Overall Dimension (L*W*H, mm)
Overall Dimension (L*W*H, mm)
Weight (KG)
1500
Main Application:
Carbonization and Graphitization treatment of carbon materials, like synthetic graphite film (Polyimide graphite flake and abbreviated PI film), carbon fiber, C/C composites, Graphene, Lithium battery negative electrode materials, VGCF negative material, etc. Purification of Carbon Nanotube (CNT), Natural Graphite, etc. Sintering of high temperature ceramics, other
materials which can be sintered or heated in graphite hot zone (carbon included environment).
Furnace Structure
Related Products
Packing&Shipping
We have more than ten years of exporting experience.
We have long term cooperation freight forwarding in exporting, customs declaration line.
We can choose the best and economy transport way for you.
After Sales Service
Company Introduction
Founded in June 2003, Zhuzhou Chenxin Induction Equipment Co.,Ltd is a scientific and technological enterprise relying on semiconductor converting technology. We has always been commitied to the manufacturer of various industrial furnace products, and have won several provincial technological progress awards and patent certificates. Our products have been exported to Vietnam, Thailand, Sayria, South Africa, Japan, Korea, USA and other countries as well as more than 20 domestic provinces and cities.
Customer Photos
