1200.C Lab Title Tube Furnace Xinyu Lab Heat Treatment Electric Rotary Tube Furnace For Preparing LiFePO3 LiMnNiO3 Materials

Xinyu lab heat treatment electric rotary tube furnace for preparing LiFePO3 LiMnNiO3 materials

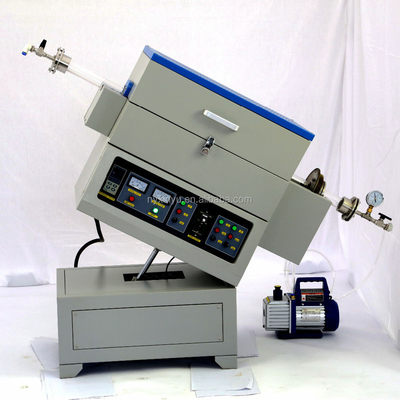

XY-1200RTF rotary tube furnace is designed for calcining inorganic compound with better uniformity, especially excellent for preparing Li-Ion battery cathode materials with conductive coating, such as LiFePO3, LiMnNiO3, etc in R&D Laboratory.

Lab rotary tube furnace specificaiton:

Furnace tube: dia40/50/60/80/100mm

Heating zone: length 200mm,300mm or 450mm

Max. temperature: 1200 ^oC

Working temperature: 1100^oC

Temperature control: 30 segments programmable and PID auto control.

Heating rate: 0~20 ^oC/min.

Heating elements: Fe-Cr-Al-Mo wire

Furnace structure: double shell with fan cooling

Temperature accuracy: +/-1 ^oC

Tube rotating Speed:0 - 7 RPM variable

Furnace tilt angle:0 - 30^o variable

Rated Power: 4KW

Package: Plastic paper inside, Polyfoam filled, Wooden box outside.

Payment: L/C T/T, West union,etc.

Shipping and Delivery: by air , in 15 days after receiving the payment

Warranty:Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
Replacement will be shipped to you after photo or other evidence are provided and investigated.
