Inicio /Productos/Horno de apagado/High Efficiency 4000W ZVS Induction Heater Welding Metal Quenching Equipment High Frequency Induction Heating Machine

High Efficiency 4000W ZVS Induction Heater Welding Metal Quenching Equipment High Frequency Induction Heating Machine

1 Piece
MOQ
High Efficiency 4000W ZVS Induction Heater Welding Metal Quenching Equipment High Frequency Induction Heating Machine
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: New Product 2020
Warranty of core components: 6 months
Core Components: Motherboard parts
Warranty: 6 months
Applicable Industries: Machinery Repair Shops, Home Use, Energy & Mining
Showroom Location: None
Product name: Induction Heater
Application: Hardware Industry
Function: Multifunctional
Keyword: Easy Operation
Feature: High Efficiency
Color: Customized Color
Size: Customized Size
Power: 4000W
MOQ: 1 Set
Package: Wooden Case
After-sales Service Provided: Free spare parts
After Warranty Service: Online support
Local Service Location: None
Información básica
Pago y Envío Términos
Descripción de producto
Product Parameters

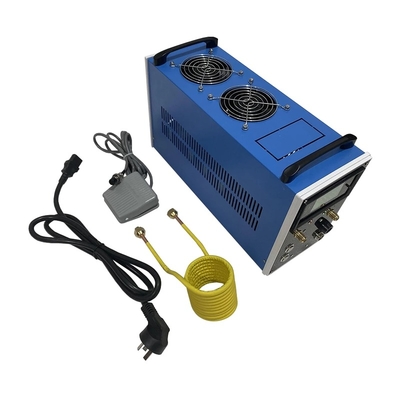

NEW 4000W ZVS Induction Heater Induction Heating Machine Metal Smelting Furnace High Frequency Welding Metal Quenching Equipment


This product is a small power induction heating machine with 220V power supply. It

can be used for heating and quenching of small iron metal materials. It can be used

with 70mL or 150ml graphite crucible to reach a maximum temperature of 1600

degrees Celsius. It can easily melt iron, gold, silver and aluminum. metal.

Feature：

1. It adopts integrated metal shell design, which is convenient to use and carry, has

good heat dissipation;

2. Integrated power supply to avoid complicated wiring;

3. The heating ring is wrapped with high temperature insulation material to prevent

short circuit during heating, and the heating ring can be removed and replaced to

customize a specific heating ring;

4. Integrate the internal water cooling circulation system to prevent the heating coil

from overheating;

5. The top two high-power fans are used for heat dissipation;

6. Add a current overload protection switch to trip the protection circuit in case of

overload;

7. Large LCD screen display system's various operating parameters, including voltage,

current,power, motherboard temperature, etc., and can be easily switched in Chinese

and English.

8. Provide 0-600 degrees or 0-1000 degrees infrared temperature controllable version.

9. Metal button switch and foot control are added, which is convenient for different

scenes.

10. Water cooling system water shortage protection

Parameter:

Dimensions: 380*140*210mm;

Heating ring size: 60*70*73mm or 70*80*73mm(inner* outer* high);

Input voltage: 220V 18V;

DC working voltage: 53.5 or 48V (internal power supply voltage is the apparent

voltage);

Maximum DC operating current: 80A

Direct heating of metal iron up to 1000-1200 degrees Celsius

Use crucible maximum temperature 1600 degrees Celsius

Precautions:

1. The boot sequence should follow the first turn on the main power switch on the

back, wait a few seconds to see the fan and pump work normally, and then see the

voltage and voltage display as 48V or 53.5，then turn on the induction heating switch

on the panel. Do not operate incorrectly, otherwise it will be directly Burn out the

motherboard and no protection. Turn off the heating switch and then turn off the

power switch when shutting down. If the shutdown is not used for a period of time,

the total power supply should be turned off after the heating switch is turned

off for one minute, so that the cooling system will cool the system and increase the

service life;

2. Work must be water-cooled and air-cooled at the same time. If any one of them

does not work,immediately disconnect the power supply and contact the

manufacturer for a solution;

3. If the conditional water cooling can be directly discharged by using cold water and

hot water, the circulation method is not adopted, so that the heat dissipation effect is

better;

4. Long-term use of antimony should be prepared, graphite high-temperature heating

will react with oxygen to form carbon dioxide and gradually consume it;

5. Always pay attention to the changes of various parameters of the display,

especially the voltage and current and the temperature of the motherboard. Whenever

an abnormality is found, the power must be disconnected immediately.

6. When using at high power, it is normal for the operating noise of the heat

dissipation system to be relatively large.

Products Description

⑤Main display
⑥Overload indicator
⑦ Heating indicator
⑧Output interface
⑨Continuous heating switch
⑩Reset switch
11 Foot switch interface
12 fuse
13 thermostat
14 cooling fan
