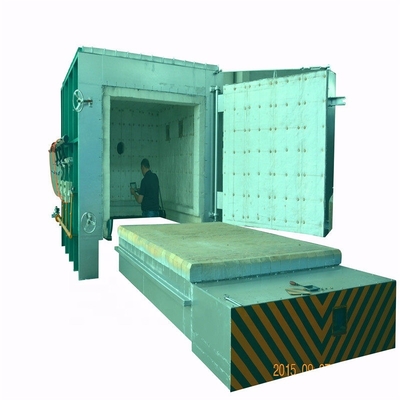

Factory Energy Saving Trolley Gas Fired Hearth Furnace For Sale

1.0 Sets
MOQ
Factory Energy Saving Trolley Gas Fired Hearth Furnace For Sale
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Condition: New
Type: Gas Bogie Hearth Furnace
Usage: Heat Treatment Furnace
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: PLC, Gearbox, Motor
Voltage: Onsite Condition
Dimension(L*W*H): based on furnace size
Weight (T): 9 T
Power (kW): 10
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant
Showroom Location: Turkey, Kazakhstan
Furnace type: bogie hearth furnace for heat treatment
Energy medium: gas
PLC control: Siemens S7-200 PLC
refractory lining: silicate aluminum fiber precompressed blocks
bogie driving mechanism: reducing gear and motor or manual system
bogie protection system: limit switch at both ends
furnace door lifting mechanism: electrical hoist or manual system
Gas burner brand: SINON, Guangzhou, China
valve system: imported brands
electrical components: Schneider, CHINT or other quality components
After-sales Service Provided: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: Turkey, Kazakhstan
Certificación: ISO CERTIFICATE
Información básica
Certificación: ISO CERTIFICATE
Pago y Envío Términos
Packaging Details: nude package or steel case package, suitable for sea transportation
Supply Ability: 100 Set/Sets per Year
Descripción de producto
Product Description

Product Application

Energy Saving Gas Fired Bogie Hearth Furnace For Sale is state standard energy saving cyclic furnace. It is a fiber structure saving 60% power consumption. It is among the first manufacturers to employ compound high aluminum porcelain nail group, trolley anti-explosion sealing bricks, automatic sealing trolley and furnace door, and integrated rail. This series furnace is applicable to the quenching, annealing and aging treatment of high chrome parts, high manganese cast parts, cast iron, rolls, steel balls, 45# steel parts and others.

SPECIFICATIONS FOR Energy Saving Gas Fired Bogie Hearth Furnace For Sale
Temperature control
system
Rated Temperature
℃
1300
common heating temperature
℃
400-1250
Furnace body exterior temperature
℃
≤ 55 + room temperature
Temperature control system precision
℃
≤±1
Uniformity of furnace temperature
℃
≤±10
Gas burning system
Fuel

natural gas
Gas calorific value
Kcal/m3
7000
Gas supply pressure
Mpa
0.05-0.1
Mechanical system
door lifting mechansim

electric hoist
bogie driving system

reducing motor
door and bogie moving speed
m/min
6-8
Refractory lining
hearth lining

aluminum silicate fiber
bogie lining

refractory brick

Main Features

1) High efficiency Gas Fired Bogie Hearth Car Bottom Furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.

2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.

3) Heating components: high temperature resistance alloy wires and strips.

4) Low noise, energy-friendliness, and stable performance.


5) Advanced CAD design.


6) Years of experiences in heat treatment process.
Energy Saving Gas Fired Bogie Hearth Furnace For Sale

Detailed Images

Control Cabinet

Name: GGD type electrical control cabinet

Brand: CHINT, SIEMENS, Schneider, Omron, etc.

Original: China, Germany, French, Japan, etc.


Burner

Name: SINON burner (Germany technology)
Brand: SINON
Original: China

Gas piping system

Name: air and gas pipe system
Brand: SINON burner, imported
Original: Germany

Push Rod Sealing Mechanism

Name: push rod sealing mechanism
Brand: domestic quality brand
Original: CHINA
The door and furnace door is tightly sealed together to prevent heat loss.

Company Introduction
Wuxi Wondery Trading Co., Ltd is a comprehensive furnace supplier.
We can supply the following products: box type furnace, bogie hearth furnace, hot air circulation oven, well type furnace, hood type furnace, tube type furnce, mesh belt furnace, continuous roller hearth furnace, titable roller furnace, push rod furnace,steel strip furnace, aluminumalloy quenching furnace, aging furnace, brazing furnace, crucible furnace, aluminum melting and holding furnace.
The heat treatment furnace treats the workpiece under protective atmosphere, control atmosphere, or vacuum status and with energy mediums such as electricity, natural gas, coal gas industrial fuel oil and others.
Certifications
Packing & Delivery
Packaging
Size
depending on furnace effective size
Weight
1Ton to 30Ton



Packaging Details
The furnace is duly packed and fixed inside the container. The control cabinet is packed with PE film.
Energy Saving Gas Fired Bogie Hearth Furnace For Sale
Packaging
Size
depending on furnace effective size
Weight
1T to 30Ton



Container Details
The small furnace can be loaded into 20GP, 40GP, or 40HQ. The big furnace should be loaded in the 20FR or 40FR.
Energy Saving Gas Fired Bogie Hearth Furnace For Sale
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the furnace, training how to use the furnace.

* Engineers available to service machinery overseas.
